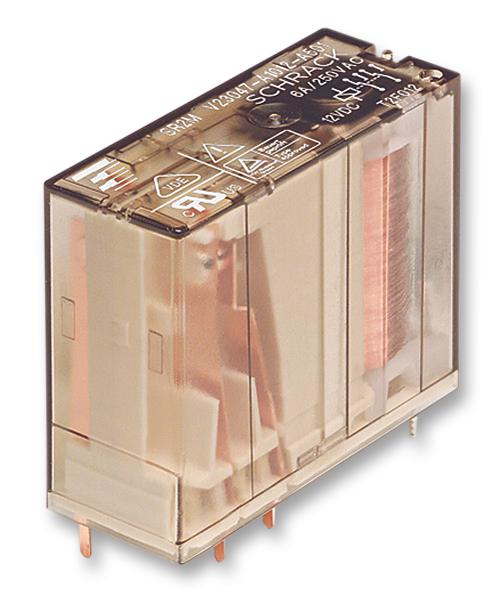

V23047-A1012-A501 Relay, Safety, DPDT, 250VAC, 6a SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:V23047-A1012-A501 Bestelcode:1175062

Prijs:
Actie prijs€20,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (482 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - V23047-A1012-A501 - Safety Relay, 12 VDC, DPDT, V23047, Through Hole, 6 A, Solder

  • Coil Voltage: 12VDC
  • Contact Configuration: DPDT
  • Product Range: V23047 Series
  • Relay Mounting: Through Hole
  • Contact Current: 6A
  • Relay Terminals: Solder
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 24V
  • Contact Material: Silver Nickel
  • IP Rating: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: TUV, VDE
  • Approval Category: UL Recognised
  • Coil Resistance: 206ohm
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 6A
  • Contact Current Min: 10mA
  • Contact Voltage AC Max: 240V
  • Current Rating: 6A
  • DC Coil Power: 699mW
  • Dielectric Voltage Coil to Contact: 4000VAC
  • Dielectric Voltage Contact to Contact: 1500VAC
  • External Depth: 29mm
  • External Height: 25.5mm
  • External Length / Height: 25.5mm
  • External Width: 12.6mm
  • Must Actuate Voltage: 9V
  • Must Release Voltage: 1.2V
  • Switch Current Max: 6A
  • Switching Capacity: 1500 VA
  • Switching Current Max: 6A
  • Switching Voltage AC / DC Max: 400VAC
  • Weight: 20g
