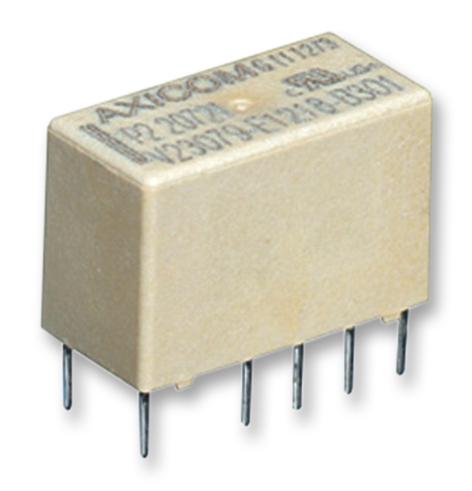

V23079-A1005-B301 Relay, Signal, DPDT, 250VAC, 220VDC, 2A AXICOM - Te Connectivity

AXICOM - TE CONNECTIVITYSKU:V23079-A1005-B301 Bestelcode:1175082

Prijs:
Actie prijs€5,25

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3388 units)

Documenten en downloads

Omschrijving

AXICOM - TE CONNECTIVITY - V23079-A1005-B301 - Signal Relay, 24 VDC, DPDT, 2 A, P2/V23079, Through Hole, Non Latching

  • Coil Voltage: 24VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: P2/V23079 Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Silver Nickel
  • Coil Resistance: 4.114kohm
  • Approval Bodies: IEC
  • Approval Category: UL Recognised
  • Approvals & Standards: IEC, UL
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 24V
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 220V
  • Contact Voltage DC Nom: 220V
  • DC Coil Power: 140mW
  • Dielectric Voltage Coil to Contact: 1500VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 7.2mm
  • External Height: 9.8mm
  • External Length / Height: 9.8mm
  • External Width: 14.5mm
  • Flammability Rating: UL94V-0
  • IP / NEMA Rating: IP67
  • Lead Spacing: 2.54mm
  • Must Actuate Voltage: 18V
  • Must Release Voltage: 2.4V
  • Operating Time: 5ms
