V23079B1201B301 Relay, Signal, DPDT, 250VAC, 220VDC, 2A AXICOM - Te Connectivity

AXICOM - TE CONNECTIVITYSKU:V23079B1201B301 Bestelcode:4219995

Prijs:
Actie prijs€6,94

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2421 units)

Documenten en downloads

Omschrijving

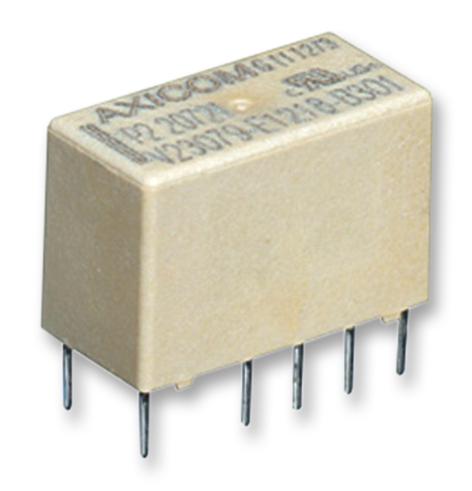

AXICOM - TE CONNECTIVITY - V23079B1201B301 - Signal Relay, 5 VDC, DPDT, 2 A, P2/V23079, Through Hole, Latching Dual Coil

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: P2/V23079 Series
  • Relay Mounting: Through Hole
  • Coil Type: Latching Dual Coil
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Silver Nickel
  • Coil Resistance: 178ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: IEC, UL
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 220V
  • External Depth: 14.5mm
  • External Height: 9.8mm
  • External Width: 7.2mm
  • Relay Type: Latching
