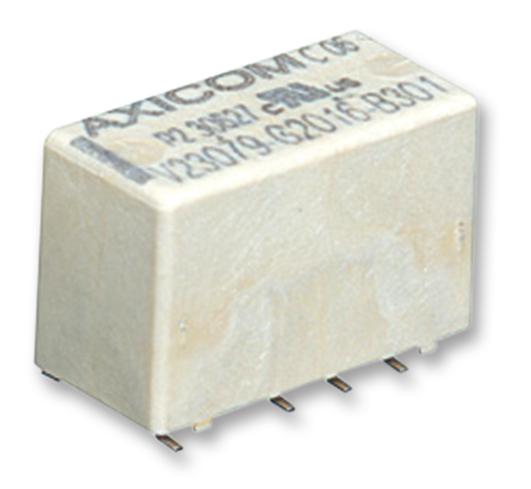

V23079D1003B301 Relay, Signal, DPDT, 250VAC, 220VDC, 2A AXICOM - Te Connectivity

AXICOM - TE CONNECTIVITYSKU:V23079D1003B301 Bestelcode:1608358

Prijs:
Actie prijs€6,29

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (36 units)

Documenten en downloads

Omschrijving

AXICOM - TE CONNECTIVITY - 5-1393788-7 - Signal Relay, 12 VDC, DPDT, 2 A, P2/V23079, Surface Mount, Non Latching

  • Coil Voltage: 12VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: P2/V23079 Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Silver Nickel
  • Coil Resistance: 1.029kohm
  • SVHC: No SVHC (27-Jun-2018)
  • Approvals & Standards: IEC, UL
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 220V
  • Contact Voltage DC Nom: 220V
  • External Depth: 14.5mm
  • External Height: 10.4mm
  • External Length / Height: 9.9mm
  • External Width: 7.2mm
  • Nom Operating Power: 140mW
  • Operating Voltage Range: 9V to 26.15V
  • Relay Type: General Purpose
