Documenten en downloads
Omschrijving

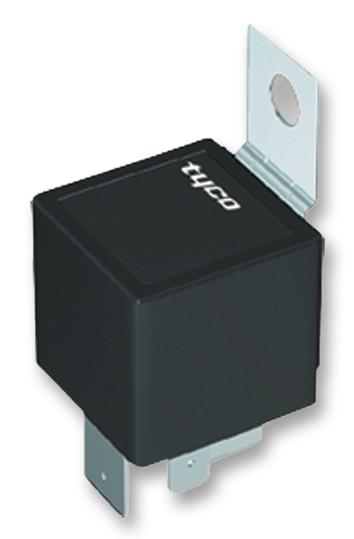

TE CONNECTIVITY - 3-1393303-4 - Power Relay, SPST-NO, 12 VDC, 60 A, Power Relay F4, Panel Mount, Non Latching
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Contact Current: 60A
- Product Range: Power Relay F4 Series
- Relay Mounting: Panel
- Coil Type: Non Latching
- Contact Voltage VAC: -
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Alloy
- Coil Resistance: 90ohm
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 120A
- Contact Current Rating: 40A
- Contact Voltage DC Nom: 12V
- External Depth: 26.2mm
- External Height: 26.05mm
- External Length / Height: 26.05mm
- External Width: 26.2mm
- Flammability Rating: UL94-HB
- Nom Operating Power: 1.6W
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Power - General Purpose
- Release Time: 10ms
Verwachte verzendkosten
Bekijk ook eens

TE CONNECTIVITY

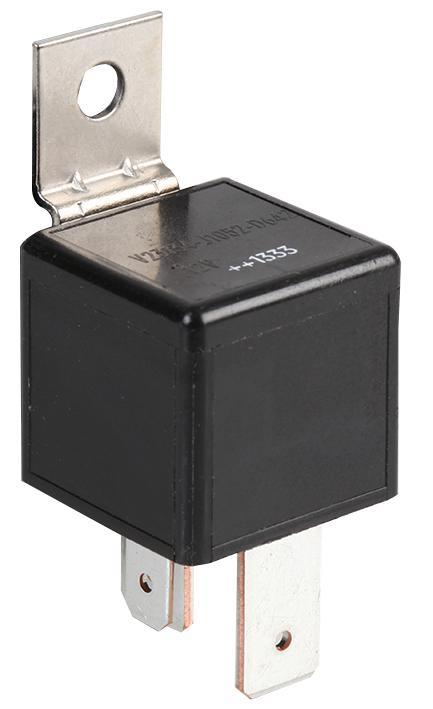

V23134J1052D642 Relay, Automotive, SPST-NO, 12VDC, 50A Te Connectivity
Actie prijs€15,20
Op voorraad, 345 producten
TE CONNECTIVITY
V23134J1053D642 Relay, Automotive, SPST-NO, 24Vdc, 50A Te Connectivity
Actie prijs€17,94
Op voorraad, 233 producten
TE CONNECTIVITY
V23134B0052C642 Relay, Automotive, SPST-NO, 12VDC, 40A Te Connectivity
Actie prijs€14,71
Op voorraad, 318 producten
TE CONNECTIVITY
V23134A0052C643 Relay, Automotive, SPDT, 12VDC, 40A Te Connectivity
Actie prijs€15,09
Op voorraad, 443 producten
SCHRACK - TE CONNECTIVITY
PT571024 Relay, 4PDT, 240Vac, 6a SCHRACK - Te Connectivity
Actie prijs€15,38
Op voorraad, 275 producten
SCHRACK - TE CONNECTIVITY

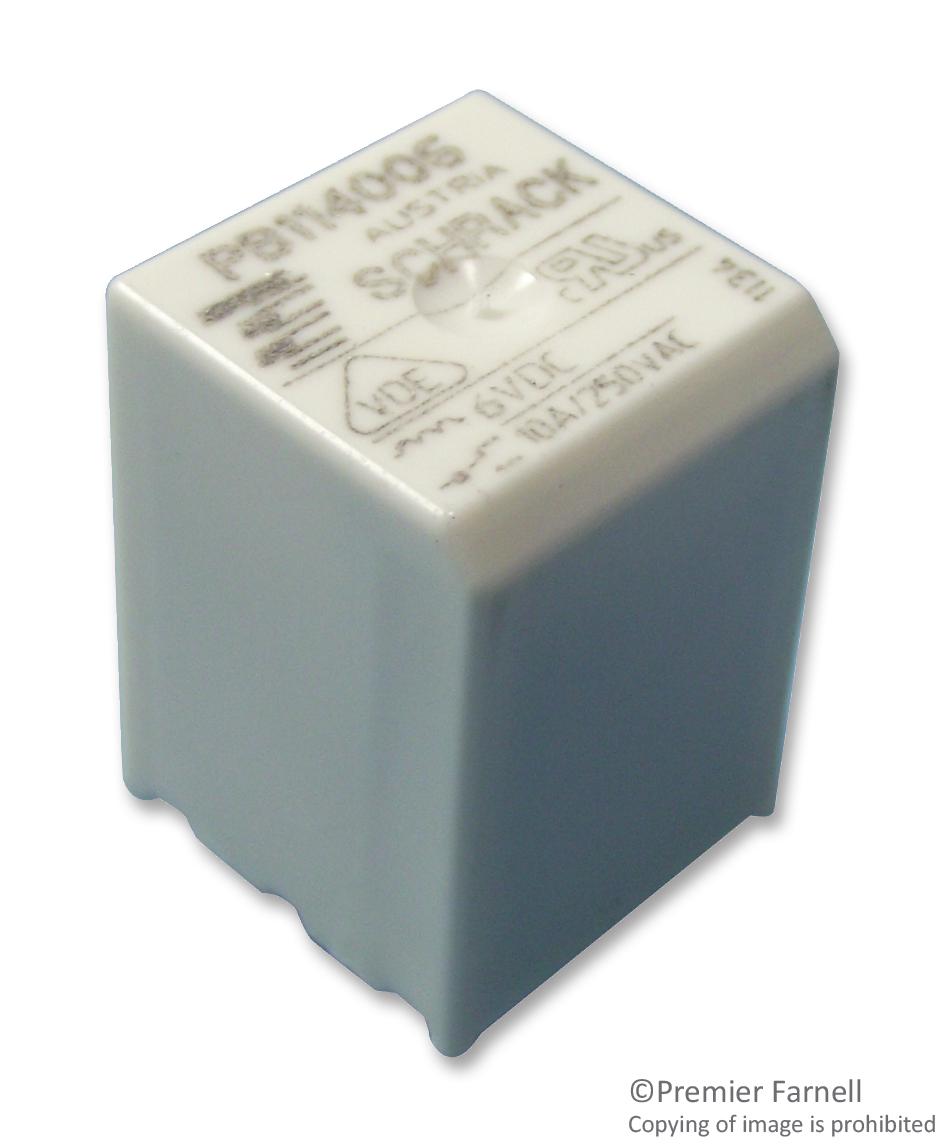

PB114006 Relay, SPDT, 250VAC, 10A SCHRACK - Te Connectivity
