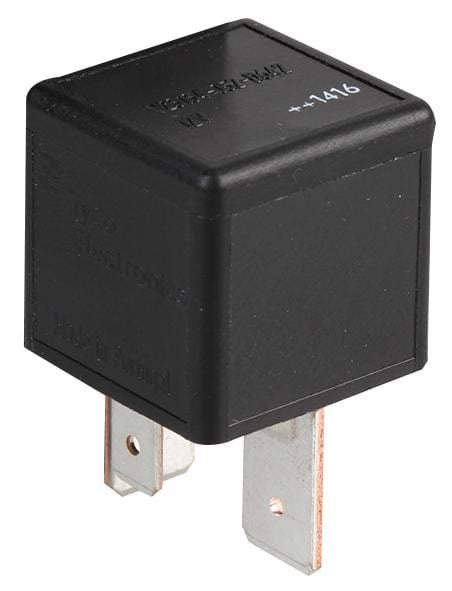

V23134J52D642 Relay, Automotive, SPST-NO, 12VDC, 50A Te Connectivity

TE CONNECTIVITYSKU:V23134J52D642 Bestelcode:9913769

Prijs:
Actie prijs€14,96

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2408 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - V23134J52D642 - Automotive Relay, 12 VDC, 50 A, SPST-NO, Panel Mount, Quick Connect, Power Relay F7

  • Coil Voltage: 12VDC
  • Contact Current: 50A
  • Contact Configuration: SPST-NO
  • Relay Mounting: Panel
  • Relay Terminals: Quick Connect
  • Product Range: Power Relay F7 Series
  • Contact Voltage DC Nom: 12V
  • Coil Resistance: 90ohm
  • Contact Material: Silver Nickel Oxide
  • Coil Type: DC
  • Coil Voltage VDC Nom: 12V
  • Contact Current DC Max: 70A
  • Contact Current Max: 70A
  • Contact Voltage DC Max: 12V
  • Current Rating: 70A
  • Dielectric Voltage Coil to Contact: 500VAC
  • Dielectric Voltage Contact to Contact: 500VAC
  • External Depth: 25.9mm
  • External Height: 24.9mm
  • External Length / Height: 24.9mm
  • External Width: 25.9mm
  • Mechanical Life: 10 x 10? operations
  • Must Actuate Voltage: 7.2VDC
  • Must Release Voltage: 1.6VDC
  • No. of Pins: 4Pins
  • Nom Operating Power: 1.6W
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Operating Time: 7ms
  • Relay Type: General Purpose
  • Release Time: 2ms
  • Switch Current Max: 70A
  • Switched Current Max: 240A
  • Switching Current Max: 70A
  • Switching Current Min: 1A
  • Weight: 1.3g
