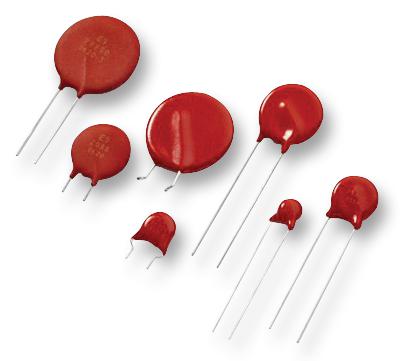

V36ZA80P Varistor, 160J, 23VAC LITTELFUSE

LITTELFUSESKU:V36ZA80P Bestelcode:1757261

Prijs:
Actie prijs€1,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1401 units)

Documenten en downloads

Omschrijving

LITTELFUSE - V36ZA80P - TVS Varistor, MOV, 23 V, 31 V, ZA, 63 V, Disc 20mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 23V
  • Voltage Rating V DC: 31V
  • Product Range: ZA Series
  • Clamping Voltage Vc Max: 63V
  • Varistor Case Style: Disc 20mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 2kA
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 160J
  • Automotive Qualification Standard: -
  • Body Diameter: 20mm
  • Capacitance: 0.012µF
  • Clamping Voltage: 63V
  • Clamping Voltage @ 8/20µs Max: 63V
  • Device Marking: P36Z80
  • Operating Temperature Range: -55°C to +85°C
  • Peak Pulse Current IPP @ 8/20µs: 2000A
  • Suppressor Type: Varistor
  • Surge Current: 2000A
  • Varistor Voltage @ 1mA: 36V
  • Varistor Voltage @ 1mA Max: 40V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
