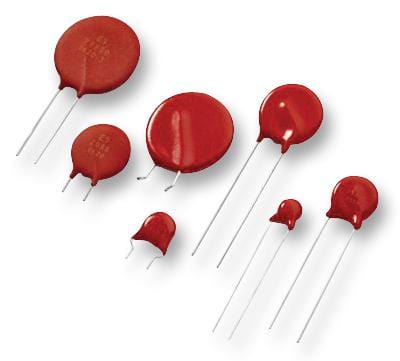

V47ZA20P Varistor, Radial, 47V LITTELFUSE

LITTELFUSESKU:V47ZA20P Bestelcode:1816978

Prijs:
Actie prijs€1,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 3 producten leverbaar

Documenten en downloads

Omschrijving

LITTELFUSE - V47ZA20P - TVS Varistor, MOV, 30 V, 38 V, ZA, 93 V, Disc 20mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 30V
  • Voltage Rating V DC: 38V
  • Product Range: ZA Series
  • Clamping Voltage Vc Max: 93V
  • Varistor Case Style: Disc 20mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 2kA
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 23J
  • Automotive Qualification Standard: -
  • Body Diameter: 20mm
  • Clamping Voltage: 93V
  • Device Marking: P47Z20
  • Operating Temperature Range: -55°C to +85°C
  • Suppressor Type: Transient Voltage
  • Surge Current: 2000A
  • Varistor Voltage @ 1mA: 47V
  • Varistor Voltage @ 1mA Max: 52V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
