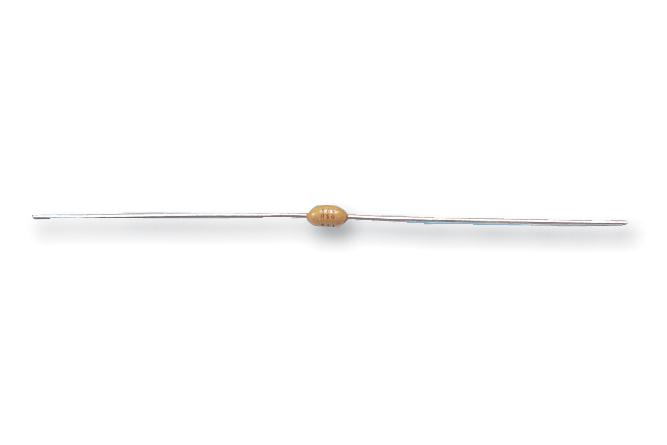

VA100014A300D Varistor, 32V, 10VAC, 14VDC, Axial KYOCERA Avx

KYOCERA AVXSKU:VA100014A300D Bestelcode:1316525

Prijs:
Actie prijs€1,31

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (317 units)

Documenten en downloads

Omschrijving

KYOCERA AVX - VA100014A300D - TVS Varistor, 10 V, 14 V, VA, 32 V, Axial Leaded, Multilayer Varistor (MLV)

  • Voltage Rating VAC: 10V
  • Voltage Rating V DC: 14V
  • Product Range: VA Series
  • Clamping Voltage Vc Max: 32V
  • Varistor Case Style: Axial Leaded
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 40A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 100mJ
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Body Diameter: 2.54mm
  • Breakdown Voltage Max: 20.3V
  • Breakover Voltage Min: 16.5V
  • Capacitance: 500pF
  • Clamping Voltage: 30V
  • Clamping Voltage @ 8/20µs Max: 30V
  • External Length / Height: 4.32mm
  • Inductance: 3.5nH
  • Lead Diameter: 0.5mm
  • Lead Length: 30mm
  • Nom Operating Voltage: 14V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 40A
  • Suppressor Type: Varistor
  • Surge Current: 40A
  • Transient Energy: 0.1J
  • Varistor Voltage: 18.5V
  • Varistor Voltage @ 1mA: 16.28V
  • Varistor Voltage @ 1mA Max: 20.72V
