VCS-02 Float Switch, Vert Te Connectivity

TE CONNECTIVITYSKU:VCS-02 Bestelcode:1006795

Prijs:
Actie prijs€32,18

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (475 units)

Documenten en downloads

Omschrijving

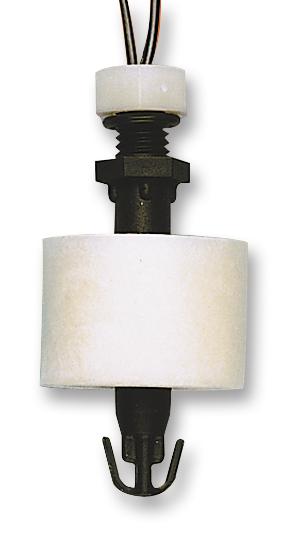

TE CONNECTIVITY - VCS-02 - Float Switch, VCS Series, Vertical, SPST-NO, Polypropylene, 15 W, 250 Vac

  • Operating Pressure Max: -
  • Sensor Body Material: -
  • Output Current: -
  • Product Range: VCS Series
  • Body Material: PP (Polypropylene)
  • Case Material: Polypropylene
  • Colour: Black
  • Contact Configuration: SPST-NO
  • Contact Current AC Max: 1A
  • Contact Voltage AC Max: 250V
  • External Length / Height: 59mm
  • Fixing Hole Diameter: 8.5mm
  • Float Diameter: 30mm
  • Height: 59mm
  • Lead Length: 0.1m
  • Material: Foamed Polypropylene (float Material)
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -30°C
  • Power Rating: 15W
  • Sensor Output: SPST-NO / SPST-NC
  • Specific Gravity of Liquid Min: 0.65
  • Switching Voltage AC / DC Max: 250VAC
