VCS-04 Float Switch, Vert Te Connectivity

TE CONNECTIVITYSKU:VCS-04 Bestelcode:1006796

Prijs:
Actie prijs€18,50

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (835 units)

Documenten en downloads

Omschrijving

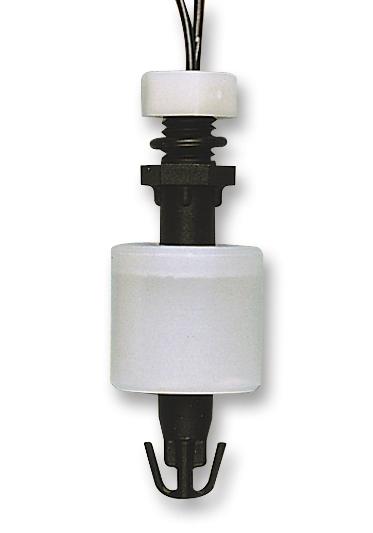

TE CONNECTIVITY - VCS-04 - Float Switch, VCS Series, Vertical, SPST-NO, Polypropylene, 15 W, 250 Vac

  • Operating Pressure Max: -
  • Sensor Body Material: PP (Polypropylene)
  • Output Current: -
  • Product Range: VCS Series
  • Body Material: PP (Polypropylene)
  • Case Material: Polypropylene
  • Colour: Black
  • Contact Configuration: SPST-NC
  • Contact Current AC Max: 1A
  • Contact Voltage AC Max: 250V
  • External Length / Height: 59mm
  • Fixing Hole Diameter: 8.5mm
  • Float Diameter: 22mm
  • Lead Length: 0.1m
  • Material: Polypropylene (Housing), Hollow Polypropylene (Float Material)
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Power Rating: 15W
  • Sensor Output: SPST-NO / SPST-NC
  • Specific Gravity of Liquid Min: 0.65
  • Switching Voltage AC / DC Max: 250VAC
