Omschrijving

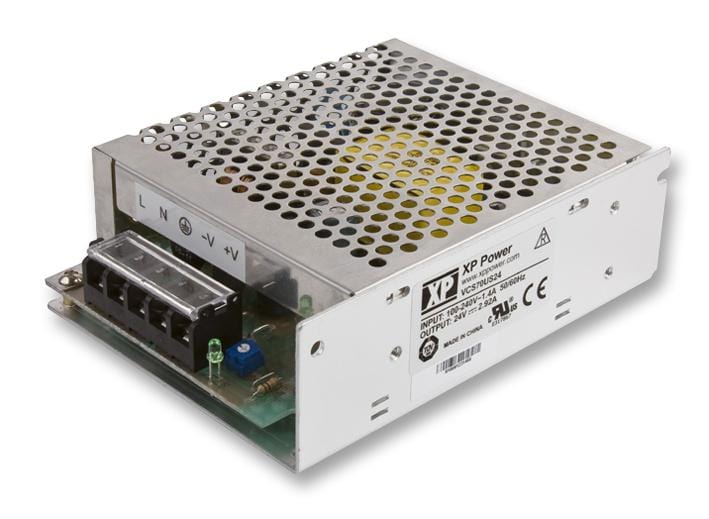

XP POWER - VCS70US15 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 70 W, 15 V, 4.67 A
- No. of Outputs: 1Outputs
- Output Power Max: 70W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 4.67A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: VCS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Industrial
- Approval Bodies: CSA, IEC, TUV, UL
- Height: 40mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Length: 130mm
- No. of Outputs: 1 Output
- Output Current Max: 4.67A
- Output Ripple Voltage pk-pk: 150mV
- Power Rating: 70W
- Width: 98.5mm
