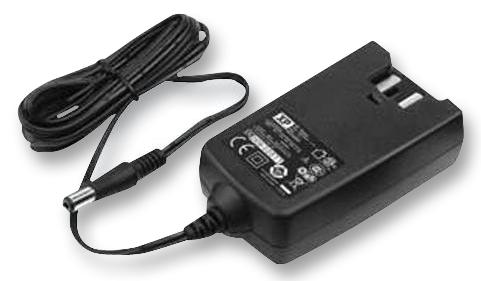

VEP24US09 Adaptor, AC-DC, Medical, 9V, 2.2A XP Power

XP POWERSKU:VEP24US09 Bestelcode:1716981

Prijs:
Actie prijs€42,24

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (645 units)

Documenten en downloads

Omschrijving

XP POWER - VEP24US09 - AC/DC Power Supply, ITE & Medical, 1 Output, 19.8 W, 9 V, 2.2 A

  • No. of Outputs: 1 Output
  • Output Power Max: 19.8W
  • Output Voltage - Output 1: 9V
  • Output Current - Output 1: 2.2A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Connector: Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Fixed
  • Input Voltage VAC: 80V AC to 264V AC
  • Product Range: VEP24 Series
  • Plug Type: Mains Plug Sold Separately
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: Medical
  • Approval Bodies: CSA, EN, IEC, UL
  • Approvals / Standards: cCSAus 60601, CSAC22.2 No.60601, IEC 60601, UL 60601
  • Efficiency: 77%
  • External Depth: 47.9mm
  • External Length / Height: 29mm
  • External Width: 88mm
  • Height: 29mm
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 80V
  • Isolation Voltage: 4000V
  • Lead Length: 1.8m
  • Length: 47.9mm
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: 0°C
  • Output Current Max: 2.2A
  • Output Ripple Voltage pk-pk: 100mV
  • Power Rating: 19.8W
  • Width: 88mm
