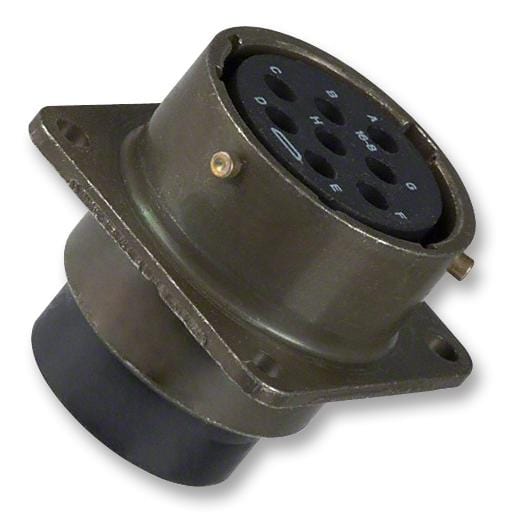

AMPHENOL AEROSPACE - VG95328C 12-10 SN - Circular Connector, VG95328, Box Mount Receptacle, 10 Contacts, Crimp Socket, Bayonet, 12-10
- Product Range: VG95328 Series, MIL-DTL-26482 Series I Equivalent
- Circular Connector Shell Style: Box Mount Receptacle
- No. of Contacts: 10Contacts
- Circular Contact Type: Crimp Socket
- Coupling Style: Bayonet
- Insert Arrangement: 12-10
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: Environmentally Sealed
- Approval Bodies: VG
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
