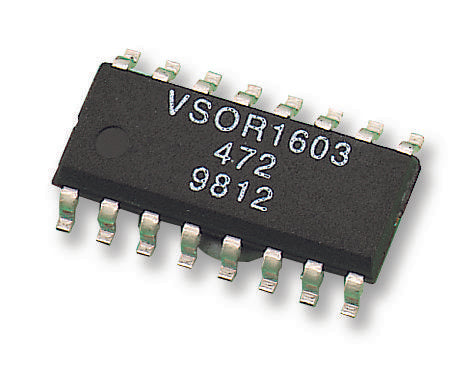

VSOR1603472JTF Resistor Array, 4K7 Vishay

VISHAYSKU:VSOR1603472JTF Bestelcode:1203461

Prijs:
Actie prijs€4,31

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (520 units)

Documenten en downloads

Omschrijving

VISHAY - VSOR1603472JTF - Fixed Network Resistor, 4.7 kohm, Isolated, 8 Resistors, SOIC, Gull Wing, ± 5%

  • Resistance: 4.7kohm
  • Product Range: VSOR Series
  • No. of Elements: 8Elements
  • Network Circuit Type: Isolated
  • Resistor Case Style: SOIC
  • No. of Pins: 16Pins
  • Voltage Rating: 50V
  • Power Rating per Element: 100mW
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: Yes
  • External Length / Height: 9.98mm
  • External Width: 3.9mm
  • Lead Spacing: 1.27mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 100mW
  • Resistance R1: 4.7kohm
  • Resistor Element Material: Thin Film
  • Resistor Mounting: Surface Mount Device
  • Temperature Coeff Tracking +: 10ppm/°C
  • Temperature Coeff Tracking -: 10ppm/°C
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 50V
