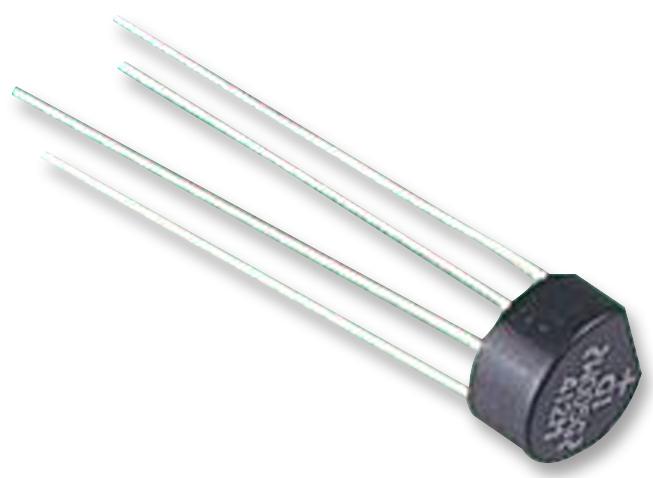

W08G-E4/51 Bridge Rectifier, 1.5A, 800V Vishay

VISHAYSKU:W08G-E4/51 Bestelcode:1497579

Prijs:
Actie prijs€1,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (59959 units)

Documenten en downloads

Omschrijving

VISHAY - W08G-E4/51 - Bridge Rectifier, Single Phase, 800 V, 1.5 A, Through Hole, 4 Pins, 1 V

  • No. of Phases: Single Phase
  • Repetitive Reverse Voltage Vrrm Max: 800V
  • Forward Current If(AV): 1.5A
  • Bridge Rectifier Case Style: Through Hole
  • Forward Voltage VF Max: 1V
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: W08G Series
  • SVHC: Lead (15-Jan-2019)
  • Current Ir Max: 5µA
  • Device Marking: W08G
  • Diode Mounting Type: Through Hole
  • External Depth: 8.84mm
  • External Length / Height: 5.6mm
  • External Width: 8.6mm
  • Forward Surge Current Ifsm Max: 50A
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • RMS Input Voltage: 560V
  • Termination Type: Through Hole
  • Voltage Vrsm: 560V
