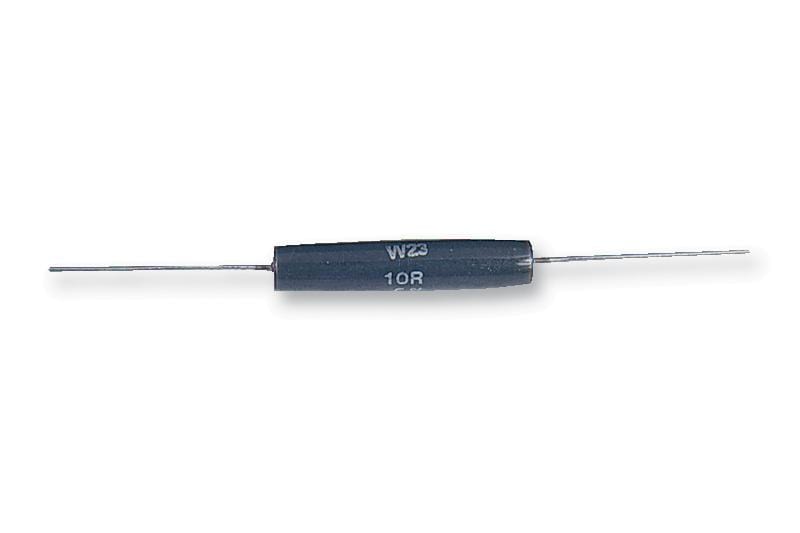

W23-47RJI RES, 47R, 5%, 9W, AXIAL, WIREWOUND TT ELECTRONICS / WELWYN

TT ELECTRONICS / WELWYNSKU:W23-47RJI Bestelcode:9505482

Prijs:
Actie prijs€9,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1196 units)

Documenten en downloads

Omschrijving

TT ELECTRONICS / WELWYN - W23-47RJI - Through Hole Resistor, 47 ohm, W23, 10.5 W, ± 5%, Axial Leaded, 500 V

  • Resistance: 47ohm
  • Product Range: W23 Series
  • Power Rating: 10.5W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 500V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 75ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 8mm
  • External Length / Height: 38mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.8mm
  • Lead Length: 30mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 350°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +350°C
  • Power Rating at 25°C: 10W
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 75ppm/°C
  • Temperature Coeff. -: 75ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 500V
