Omschrijving

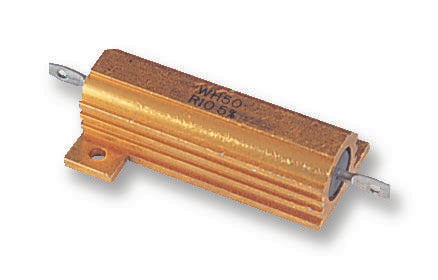

TT ELECTRONICS / WELWYN - WH50-1KJI - Resistor, Axial Leaded, 1 kohm, WH, 50 W, ± 5%, Solder Lug, 1.25 kV
- Resistance: 1kohm
- Product Range: WH Series
- Power Rating: 50W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: 1.25kV
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 50ppm/°C
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 17mm
- External Length / Height: 51mm
- External Width: 16.1mm
- Fixing Centres LxW: 21.5x39.7
- Full Power Rating Temperature: 20°C
- Insulation Resistance: 10000mohm
- No. of Pins: 2Pins
- Operating Temperature Max: 275°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +275°C
- Resistor Mounting: Panel
- Temperature Coeff. +: 50ppm/°C
- Temperature Coeff. -: 50ppm/°C
- Temperature Rise: 9.5°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating VAC: 1250V
