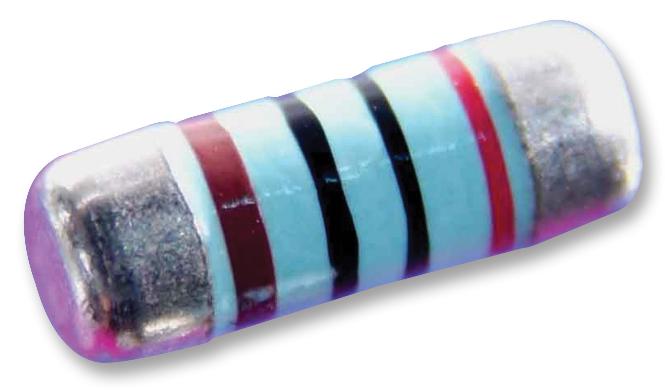

TT ELECTRONICS / WELWYN - WRM0204C-5K6FI - Surface Mount MELF Resistor, 5.6 kohm, WRM 0204, 200 V, Metal Film, 250 mW, ± 1%
- Resistance: 5.6kohm
- Product Range: WRM 0204 Series
- Voltage Rating: 200V
- Resistor Element Material: Metal Film
- Power Rating: 250mW
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 50ppm/°C
- MELF Resistor Case: MELF 0204 [3715 Metric]
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 1.4mm
- External Length / Height: 3.6mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Mounting: Surface Mount Device
