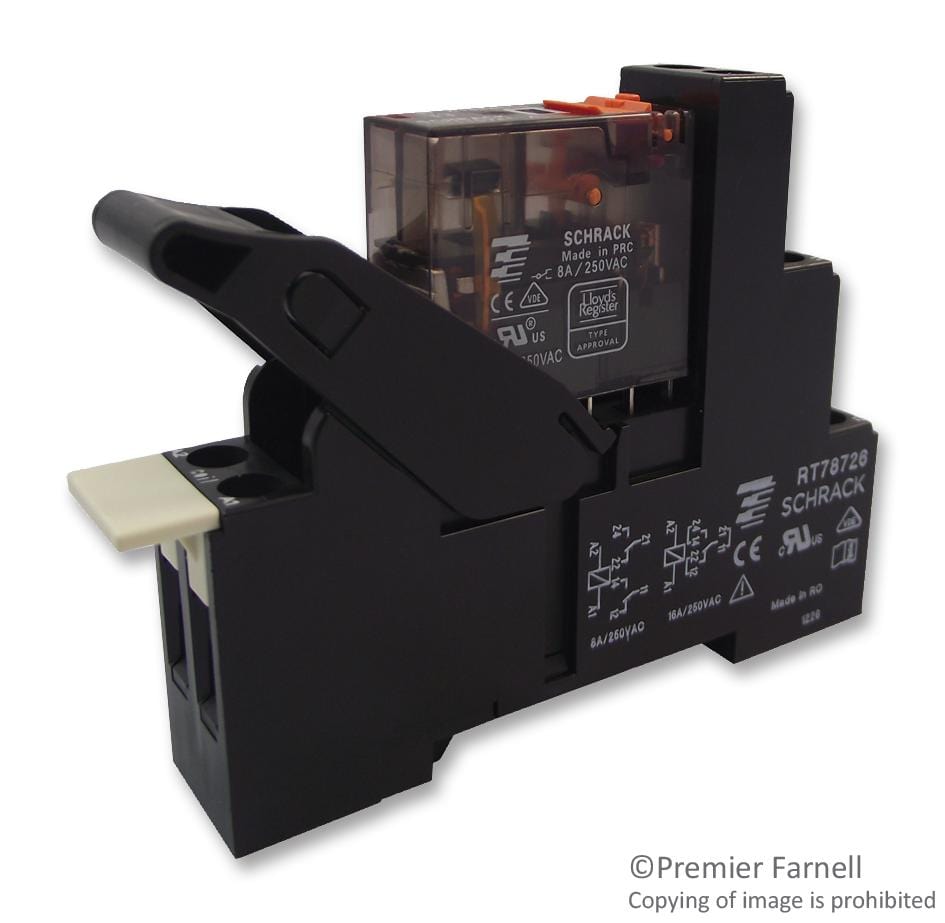

SCHRACK - TE CONNECTIVITY - 4-1415540-2 - General Purpose Relay, XT Series, Interface, Non Latching, SPDT, 24 VAC, 16 A
- Contact Configuration: SPDT
- Coil Voltage: 24VAC
- Contact Current: 16A
- Product Range: XT Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 350ohm
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: UL, VDE
- Average Power Consumption: 0.77VA
- Coil Voltage VAC Nom: 24V
- Contact Current Max: 16A
- Contact Voltage AC Nom: 240V
- External Depth: 69mm
- External Height: 77mm
- External Width: 15.8mm
- Relay Type: Interface
