Y1121100R000T9R Res, 100R, 0.01% Vishay Foil Resistors

VISHAY FOIL RESISTORSSKU:Y1121100R000T9R Bestelcode:1187043

Prijs:
Actie prijs€67,10

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (11 units)

Documenten en downloads

Omschrijving

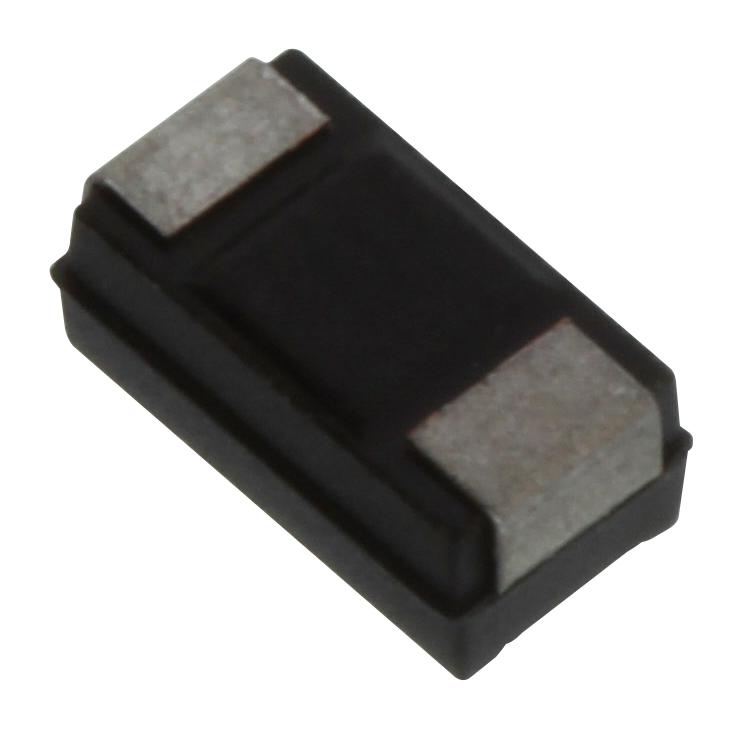

VISHAY FOIL RESISTORS - Y1121100R000T9R - SMD Chip Resistor, 100 ohm, ± 0.01%, 250 mW, 2412 [6032 Metric], Metal Foil, Precision

  • Resistor Case Style: 2412 [6032 Metric]
  • Resistance: 100ohm
  • Product Range: SMR1D Series
  • Voltage Rating: 73V
  • Resistor Element Material: Metal Foil
  • Power Rating: 250mW
  • Resistance Tolerance: ± 0.01%
  • Temperature Coefficient: ± 5ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • External Depth: 2.5mm
  • External Length / Height: 6mm
  • External Width: 3.2mm
  • Full Power Rating Temperature: 70°C
  • Load Life Stability +: 50
  • Load Life Stability -: 50ppm/°C
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Resistor Mounting: Surface Mount Device
  • Rise Time: 1ns
  • Shelf Life Stability +: 25PPM/yr
  • Shelf Life Stability -: 25PPM/yr
  • Temp Coeff Lower Limit Temperature: 0°C
  • Temperature Upper Limit Temp Coeff: 60°C
  • Thermal EMF: 0.1µV/°C
  • Tolerance +: 0.01%
  • Tolerance -: 0.01%
  • Voltage Rating V DC: 54V
  • Voltage Rating VAC: 54V
