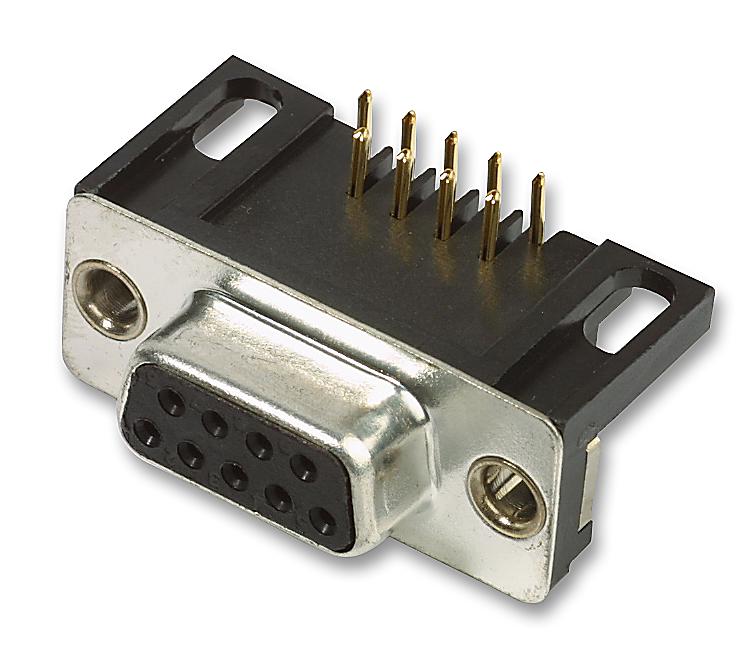

ZDE9S1AKN-146 Socket, D, T&D, R/A, 9WAY ITT Cannon

ITT CANNONSKU:ZDE9S1AKN-146 Bestelcode:1348025

Prijs:
Actie prijs€14,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1857 units)

Documenten en downloads

Omschrijving

ITT CANNON - ZDE9S1AKN-146 - D Sub Connector, Right Angle, DB9, Standard, Receptacle, ZDE, 9 Contacts, DE, Solder

  • No. of Contacts: 9Contacts
  • Gender: Receptacle
  • Contact Termination Type: Solder
  • D Sub Shell Size: DE
  • Product Range: ZDE Series
  • Connector Body Material: Steel Body
  • Contact Material: -
  • Contact Plating: -
  • Body Plating: Tin
  • Case Material: Steel, tin plating
  • Connector Mounting: Through Hole Mount Right Angle
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Temperature: 60°C
  • D Sub Connector Type: Standard
  • DC Current Max: 5A
  • Flammability Rating: UL94V-0
  • Material: Steel
  • No. of Mating Cycles: 50
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Termination Method: Through Hole
  • Withstand Voltage: 1000V
  • Working Voltage: 350V
