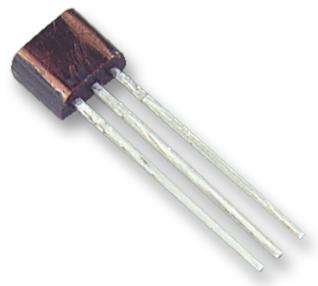

ZTX1051A Transistor, NPN, E-Line Diodes Inc.

DIODES INC.SKU:ZTX1051A Bestelcode:9526552

Prijs:
Actie prijs€2,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3968 units)

Documenten en downloads

Omschrijving

DIODES INC. - ZTX1051A - Bipolar (BJT) Single Transistor, NPN, 40 V, 4 A, 1 W, E-Line, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 40V
  • Transition Frequency ft: 155MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: 4A
  • DC Current Gain hFE: 450hFE
  • Transistor Case Style: E-Line
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: Lead (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 210mV
  • Continuous Collector Current Ic Max: 4A
  • Current Ic @ Vce Sat: 4A
  • Current Ic Continuous a Max: 4A
  • Current Ic hFE: 1A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Typ: 155MHz
  • Hfe Min: 300
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Power Dissipation Ptot Max: 1W
  • Pulsed Current Icm: 10A
  • Voltage Vcbo: 150V
