Omschrijving

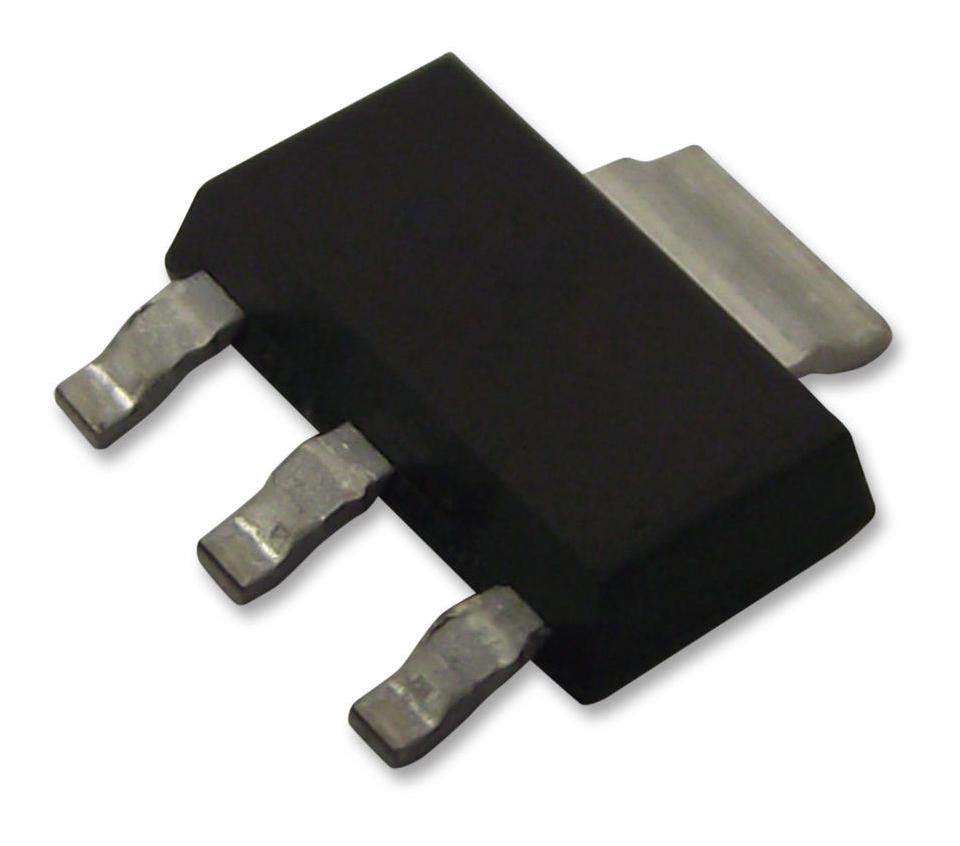

DIODES INC. - ZX5T849GTA - Bipolar (BJT) Single Transistor, NPN, 30 V, 7 A, 1.6 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 30V
- Transition Frequency ft: 140MHz
- Power Dissipation Pd: 1.6W
- DC Collector Current: 7A
- DC Current Gain hFE: 200hFE
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Av Current Ic: 7A
- Collector Emitter Saturation Voltage Vce(on): 35mV
- Continuous Collector Current Ic Max: 7A
- Current Ic @ Vce Sat: 6.5A
- Current Ic Continuous a Max: 7A
- Current Ic hFE: 7mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 140MHz
- Hfe Min: 100
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 3W
- Pulsed Current Icm: 20A
- Resistance R1: 28mohm
- SMD Marking: X5T849
- Termination Type: Surface Mount Device
- Voltage Vcbo: 80V
