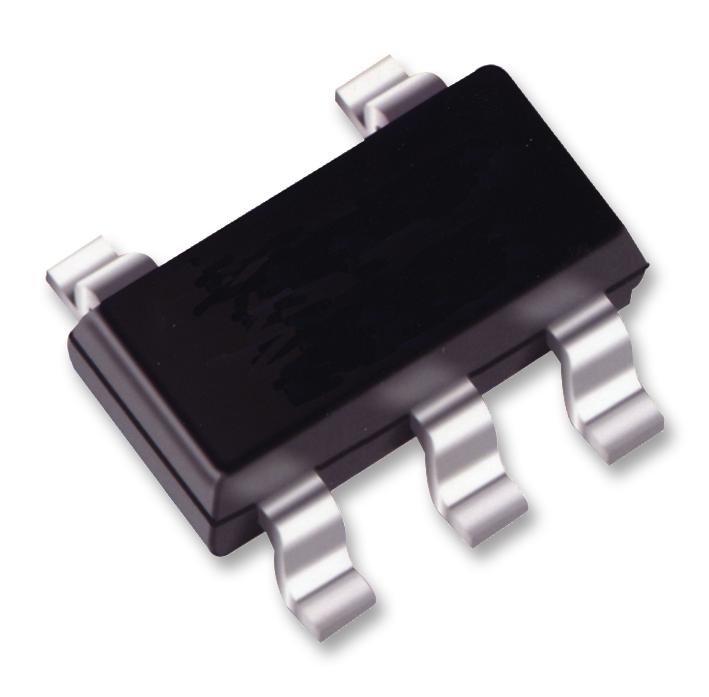

DIODES INC. - ZXLD1356ET5TA - Led Driver, 1 Output, Buck (Step Down), 6V-60V in, 500kHz switch, 60V/550mA out, TSOT-23-5
- Device Topology: Buck (Step Down)
- Input Voltage Min: 6V
- Input Voltage Max: 60V
- Output Voltage Max: 60V
- Output Current Max: 550mA
- Switching Frequency: 500kHz
- No. of Outputs: 1Outputs
- IC Mounting: SMD
- Driver Case Style: TSOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 1356
- Device Type: LED
- Dimming Control Type: DC, PWM
- Efficiency: 97%
- Input Voltage: 6V to 60V
- LED Display Type: Discrete LED
- LED Driver Application: Automotive, Lighting, Illuminated Signs
- Operating Temperature Range: -40°C to +125°C
- Output Current: 550mA
- Output Voltage: 60V
- Termination Type: Surface Mount Device
- Topology: Buck (Step Down)
