Omschrijving

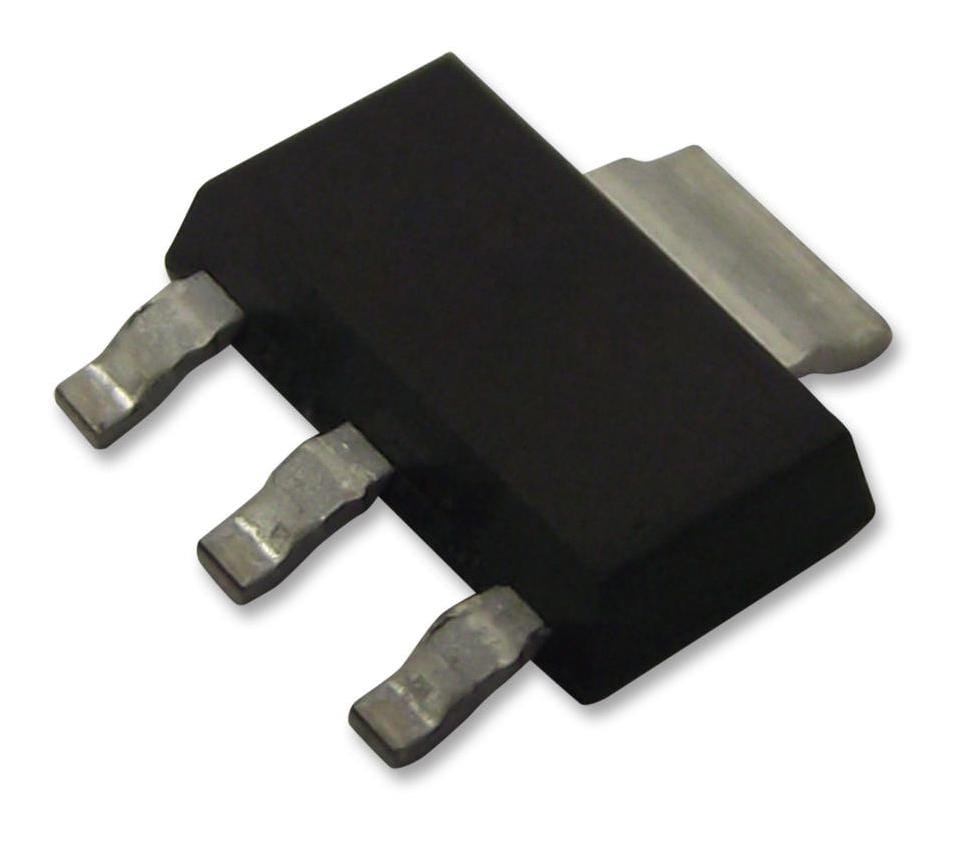

DIODES INC. - ZXMN7A11G - Power MOSFET, N Channel, 70 V, 3.8 A, 0.13 ohm, SOT-223, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 3.8A
- Drain Source Voltage Vds: 70V
- On Resistance Rds(on): 0.13ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1V
- Power Dissipation Pd: 3.9W
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Application Code: SWLR
- Current Id Max: 3.8A
- Current Temperature: 25°C
- External Depth: 7.3mm
- External Length / Height: 1.7mm
- External Width: 6.7mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 10A
- Tape Width: 12mm
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 70V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 1V
