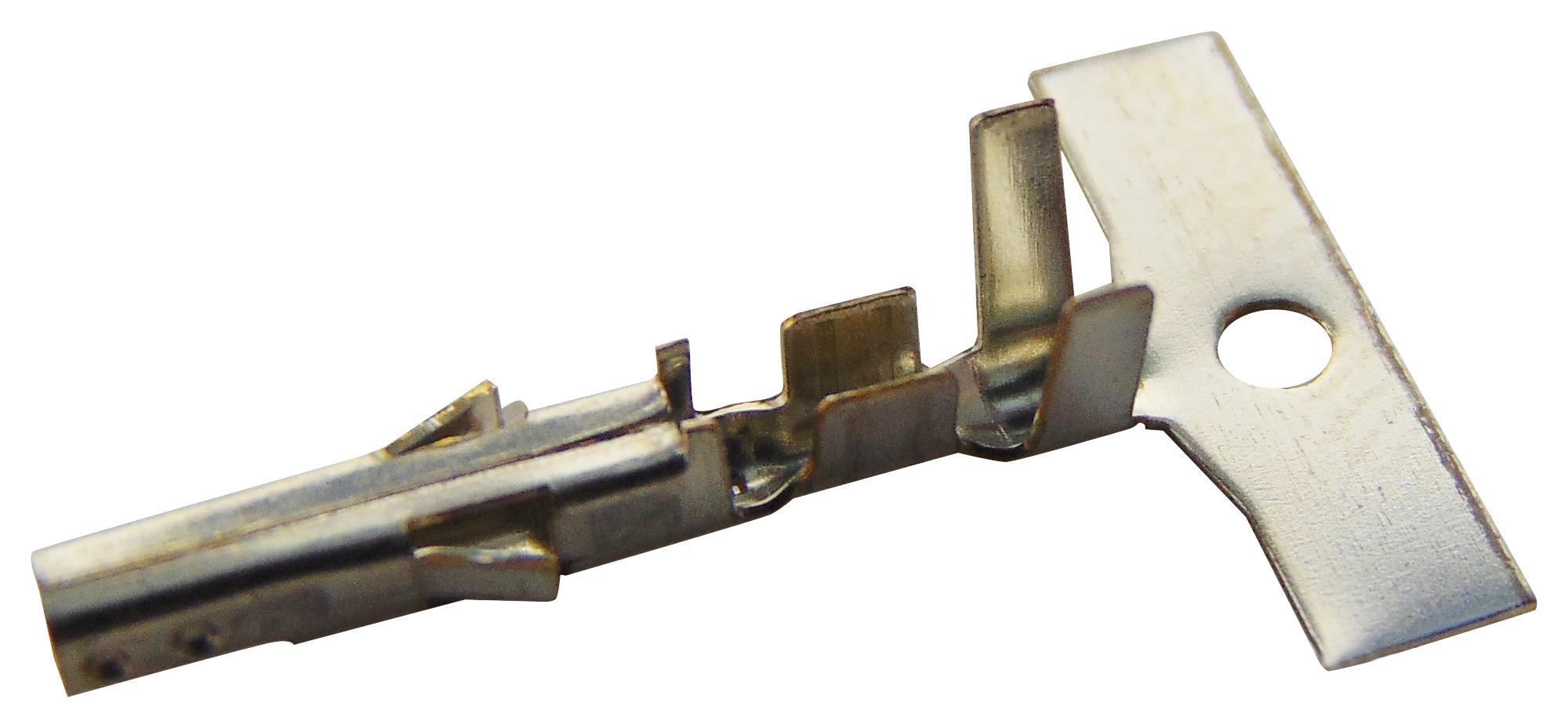

AMP - TE CONNECTIVITY - 1586316-1 - Contact, VAL-U-LOK, Pin, Crimp, 22 AWG, Tin Plated Contacts, VAL-U-LOK Series Connector System
- Product Range: VAL-U-LOK Series
- Contact Gender: Pin
- Contact Termination Type: Crimp
- Wire Size AWG Max: 22AWG
- Contact Plating: Tin Plated Contacts
- For Use With: VAL-U-LOK Series Connector System
- Wire Size AWG Min: 26AWG
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Body Plating: Tin
- Cable Diameter Max: 0.64mm
- Cable Diameter Min: 0.41mm
- Contact Size: 22
- Contact Termination: Crimp
- Current Rating: 9A
- Gender: Plug
- Voltage Rating VAC: 600V
- Wire Area Size Max: 0.3mm²
- Wire Area Size Min: 0.1mm²
- Wire Size: 22AWG
- Wire Size (AWG): 26AWG to 22AWG
