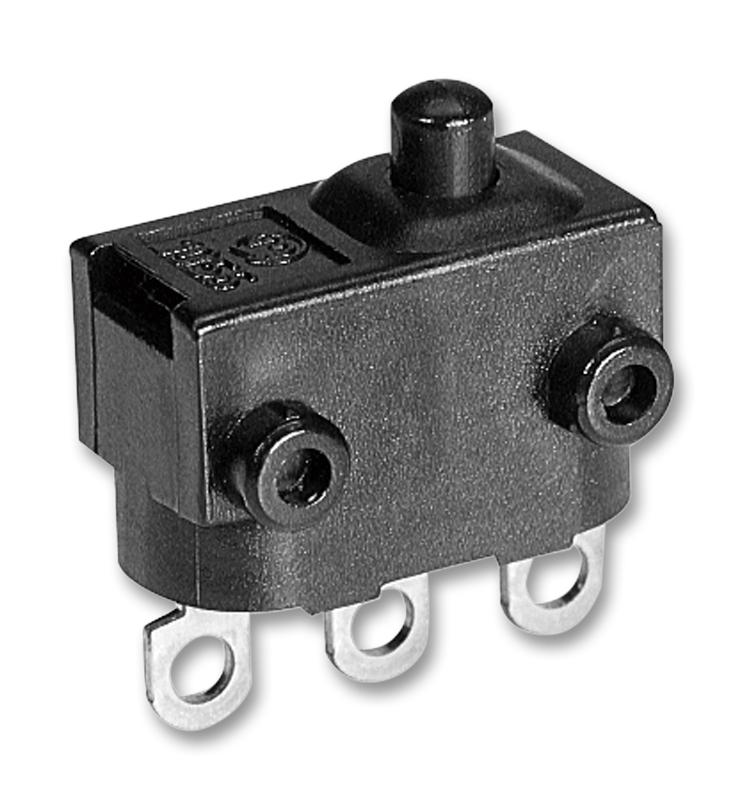

ITW SWITCHES - 16-4044 - Microswitch, Snap Action, Plunger, SPDT, Solder, 10.1 A, 28 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Plunger
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 10.1A
- Contact Voltage DC Nom: 28VDC
- Product Range: 16 Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 2.2N
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Plunger
- Actuator Type: Plunger
- Approval Bodies: CSA, UL
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current @ Contact Voltage DC Min: 20mA
- Contact Current AC: 10A
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Resistance: 25mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 28V
- Contact Voltage DC Min: 5VDC
- Dielectric Strength VDC: 1000VAC
- External Depth: 11.2mm
- External Length / Height: 11.2mm
- External Width: 17.95mm
- IP / NEMA Rating: IP40
- Insulation Resistance: 1Gohm
- No. of Electrical Operations: 1000000
- No. of Mechanical Operations: 1000000
- Operating Force: 2.2N
- Operating Temperature Max: 135°C
- Operating Temperature Min: -55°C
Frais de port prévus
Tu pourrais aussi aimer

ZF ELECTRONICS
DB3C-B1AA Microswitch, SPDT, Plunger Actuator ZF Electronics
Prix promotionnel€6,03
En stock, 4981 produits
MARQUARDT
1056.0351 Switch, Action, Snap Encl MARQUARDT
Prix promotionnel€15,31
En stock, 56 produits
ZF ELECTRONICS
D459-V3AA Microswitch, SPCO, Plunger Actuator ZF Electronics
Prix promotionnel€6,98
En stock, 1605 produits
SAIA-BURGESS
V4LS Microswitch, v4, Plunger SAIA-Burgess
Prix promotionnel€16,77
En stock, 7394 produits
ITW SWITCHES

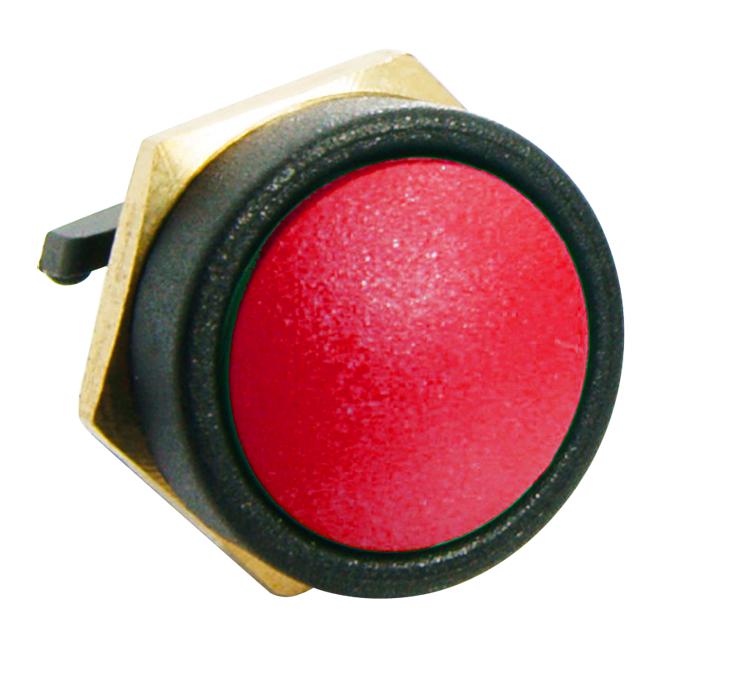

49-59122 Switch, Round, Red ITW Switches
