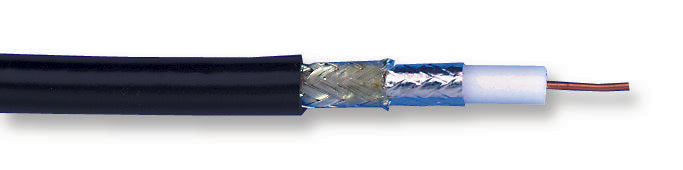

BELDEN - 1694ANH.00305 - Coaxial Cable, Brilliance®, RG6, 18 AWG, 75 ohm, 1000 ft, 304.8 m
- Coaxial Cable Type: RG6
- Wire Gauge: 18AWG
- Conductor Area CSA: -
- Impedance: 75ohm
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- Jacket Colour: Black
- Jacket Material: FR NC
- Conductor Material: Copper
- No. of Max Strands x Strand Size: Solid
- External Diameter: 6.9mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 1MHz: 0.8dB
- Attenuation @ 360MHz: 11.2dB
- Attenuation @ 5MHz: 2.3dB
- Attenuation @ 720MHz: 16.2dB
- Bend Radius Min: 69mm
- Capacitance: 53pF/m
- Conductor Make-up: 1 / 18AWG
- Conductor Size: 18AWG
- Core Diameter: 1mm
- Outer Diameter: 6.9mm
- Wire Size: 18AWG
