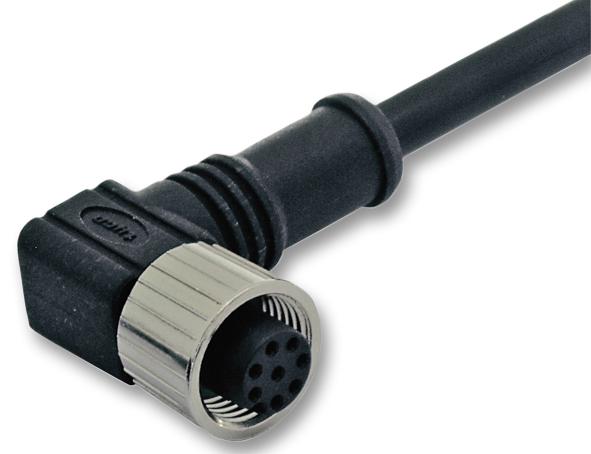

TE CONNECTIVITY - 1838258-3 - Sensor Cable, Overmoulded, IP67, 90° M12 Receptacle, Free End, 5 Positions, 5 m, 16.4 ft
- Connector to Connector: 90° M12 Receptacle to Free End
- Cable Length - Metric: 5m
- Cable Length - Imperial: 16.4ft
- Product Range: M8/M12 Connector System
- SVHC: No SVHC (07-Jul-2017)
- Accessory Type: Sensor Lead
- Body Plating: Gold
- Cable Length: 5m
- Connector A Contact Material: Brass, Gold Plated
- Connector A Contact Plating: Gold
- Connector Type A: M12 Sensor Right Angle 5 Position Receptacle
- Connector Type B: Free End
- Current Rating: 5A
- External Diameter: 14.5mm
- External Length / Height: 35mm
- For Use With: M12 Connector Type Sensors
- IP / NEMA Rating: IP67
- Lead Length: 5m
- Material: PUR
- No. of Positions: 5Ways
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
