1AD1T2B4M2RE Switch, Pcb, DPDT, On-On multicomp Pro

MULTICOMP PROUGS :1AD1T2B4M2RE Code de commande:1550152

Prix:
Prix ​​promotionnel€4,38

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (45 unité)

Documents et téléchargements

description

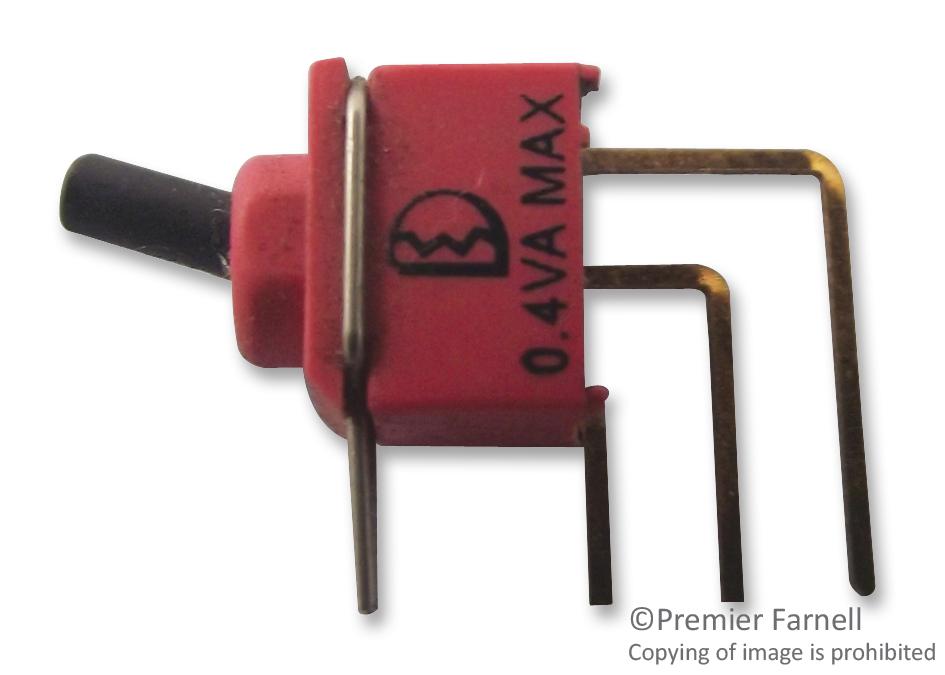

MULTICOMP PRO - 1AD1T2B4M2RE - Toggle Switch, On-On, DPDT, Non Illuminated, 1AD1, Through Hole, 100 mA

  • Switch Operation: On-On
  • Contact Configuration: DPDT
  • Illumination: Non Illuminated
  • Product Range: 1AD1 Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Approval Category: UL Recognised
  • Bush Length: 6.1mm
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 20VAC
  • Contact Voltage DC Max: 20VDC
  • External Depth: 11.43mm
  • External Length / Height: 10.4mm
  • External Width: 12.7mm
  • Flammability Rating: UL 94V-0
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 1000Mohm
  • Lever Length: 7.62mm
  • Material: Glass Filled Nylon 6.6
  • No. of Mechanical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
  • Tab Blade Thickness: 0.76mm
  • Termination Method: Through Hole
