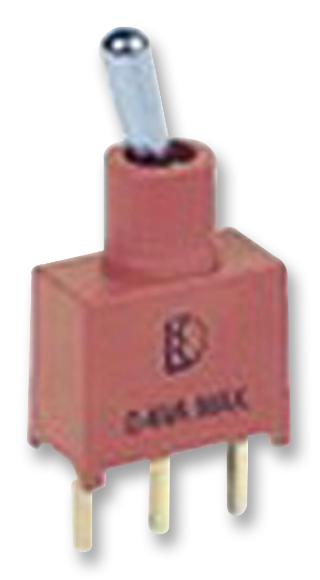

MULTICOMP PRO - 1AS2T2B4M2RE - Toggle Switch, On-(On), SPDT, Non Illuminated, 1AS2, Through Hole, 100 mA
- Switch Operation: On-(On)
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: 1AS2 Series
- Contact Current Max: 100mA
- Switch Mounting: Through Hole
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Bat
- Approval Category: UL Recognised
- Bush Length: 6.1mm
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 20VAC
- Contact Voltage DC Max: 20VDC
- External Depth: 6.6mm
- External Length / Height: 10.4mm
- External Width: 12.7mm
- Flammability Rating: UL 94V-0
- IP / NEMA Rating: IP67
- Insulation Resistance: 1000Mohm
- Lever Length: 7.62mm
- Material: Glass Filled Nylon 6.6
- No. of Mechanical Operations: 30000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Switching Power Max: 0.4VA
- Tab Blade Thickness: 0.76mm
- Termination Method: Through Hole
