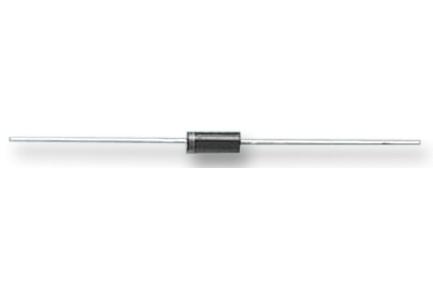

ONSEMI - 1N5821RLG - Schottky Rectifier, 30 V, 3 A, Single, DO-201AD, 2 Pins, 500 mV
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 3A
- Diode Configuration: Single
- Diode Case Style: DO-201AD
- No. of Pins: 2Pins
- Forward Voltage VF Max: 500mV
- Forward Surge Current Ifsm Max: 80A
- Operating Temperature Max: 125°C
- Product Range: 1N5821 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 80A
- Current Ir Max: 2000µA
- Diode Type: Schottky
- Forward Voltage: 500mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
- Semiconductor Technology: Si
- Termination Type: Axial Leaded
