description

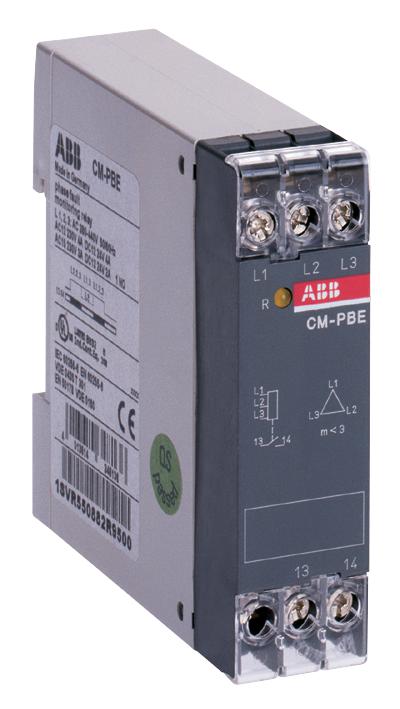

ABB - 1SVR550882R9500 - Phase Monitoring Relay, Failure Detection, CM-PBE, SPST-NO, DIN Rail, Screw
- Product Range: CM-PBE Series
- Contact Configuration: SPST-NO
- Contact Current: -
- Relay Mounting: DIN Rail
- Relay Terminals: Screw
- Switching Voltage Max: -
- Supply Voltage Max: 440VAC
- Phase Type: 3 Phase
- Power Consumption: -
- Phase Monitoring Range Min: 220VAC
- Phase Monitoring Range Max: 440VAC
- Approval Bodies: GOST, UL
- Approvals & Standards: UL
- Contact Current AC Max: 4A
- Contact Current DC Max: 4A
- External Depth: 78.5mm
- External Length / Height: 78mm
- External Width: 22.5mm
- IP / NEMA Rating: IP50
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
