281786-5 Socket IDT, 1ROW, 5WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYUGS :281786-5 Code de commande:429466

Prix:
Prix ​​promotionnel€4,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1658 unité)

Documents et téléchargements

description

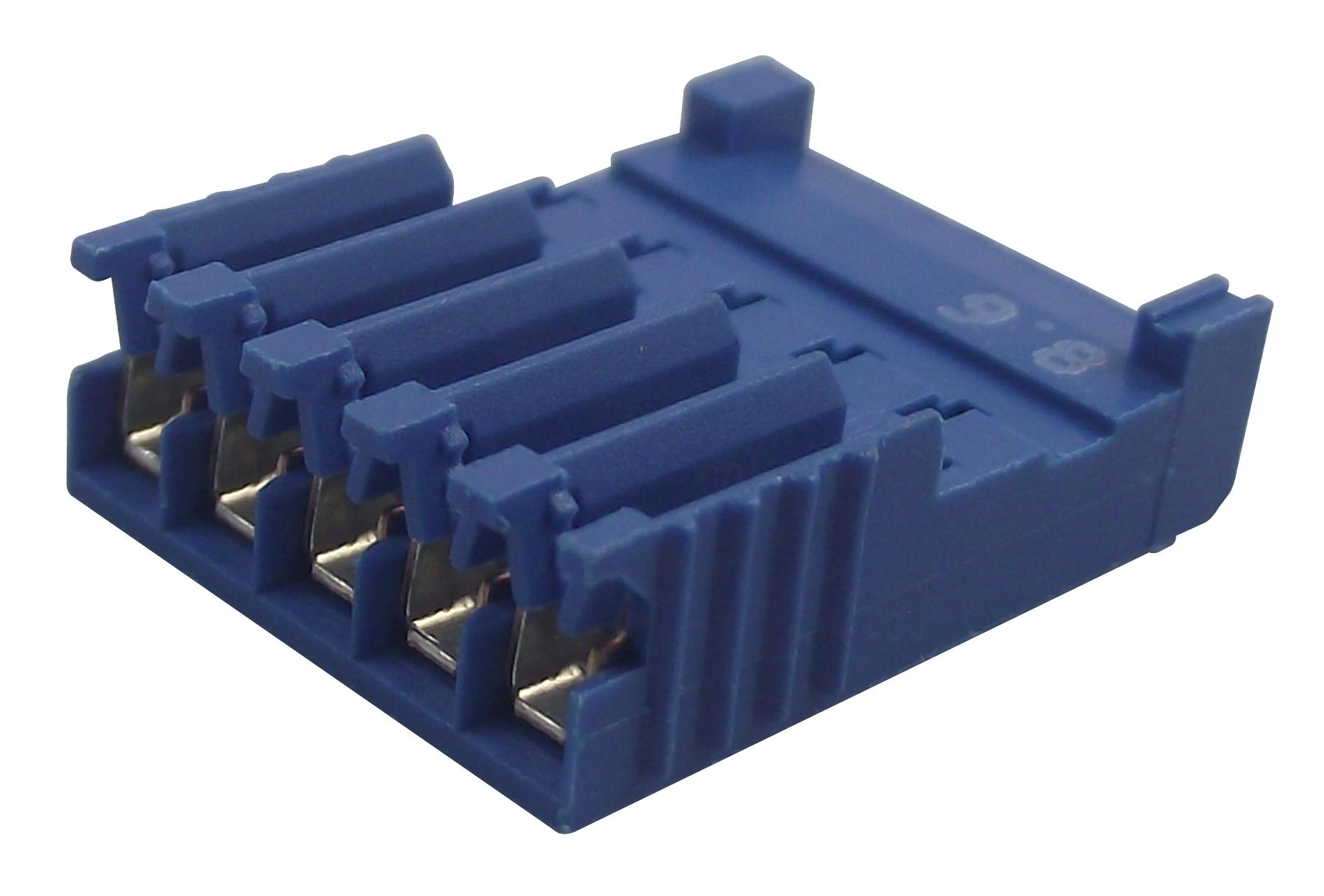

AMP - TE CONNECTIVITY - 281786-5 - IDC Connector, IDC Receptacle, Female, 2.54 mm, 1 Row, 5 Contacts, Cable Mount

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 5Contacts
  • Gender: Receptacle
  • Product Range: AMPMODU HE14 Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: HE, NFC
  • Colour: Blue
  • Contact Resistance: 30mohm
  • Current Rating: 3A
  • External Length / Height: 17.8mm
  • External Width: 5.1mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Glass Filled Polyester
  • No. of Mating Cycles: 30
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Working Voltage: 500V
