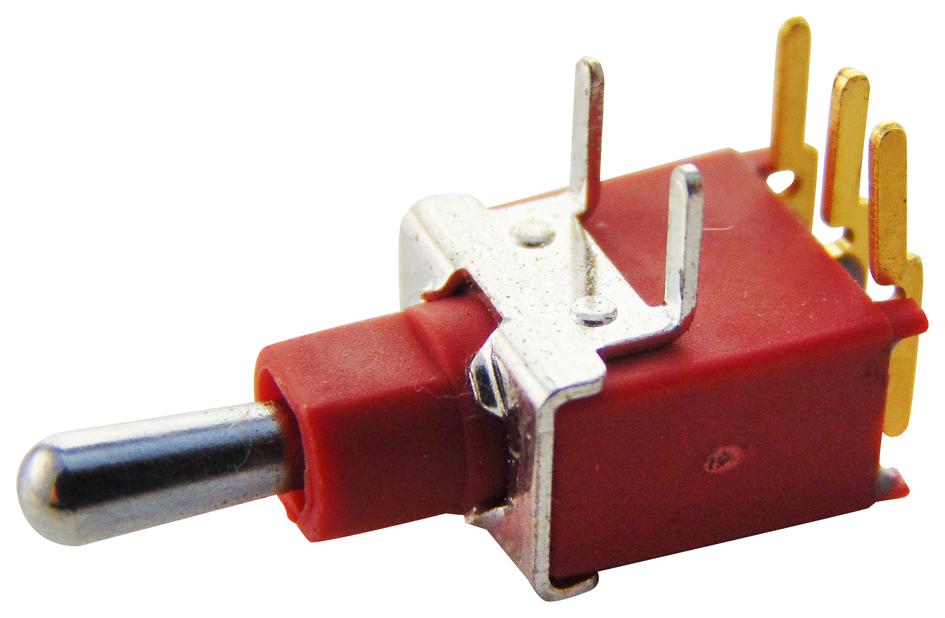

2AS4T2A1M6RE Switch, Toggle, SPDT, Mom-Off-Mom multicomp Pro

MULTICOMP PROUGS :2AS4T2A1M6RE Code de commande:1550114

Prix:
Prix ​​promotionnel€5,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (45 unité)

Documents et téléchargements

description

MULTICOMP PRO - 2AS4T2A1M6RE - Toggle Switch, (On)-Off-(On), SPDT, Non Illuminated, 2AS4, Through Hole, 100 mA

  • Switch Operation: (On)-Off-(On)
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 2AS4 Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Approval Category: UL Recognised
  • Bush Diameter: 4.8mm
  • Bush Length: 4.5mm
  • Contact Resistance: 20mohm
  • Contact Voltage AC Max: 20VAC
  • Contact Voltage DC Max: 20VDC
  • External Depth: 9.26mm
  • External Length / Height: 6.32mm
  • External Width: 8.13mm
  • Flammability Rating: UL 94V-0
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 1000Mohm
  • Lever Length: 6.1mm
  • Material: Glass Filled Nylon 6.6
  • No. of Mechanical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
  • Tab Blade Thickness: 0.51mm
  • Termination Method: Through Hole
