description

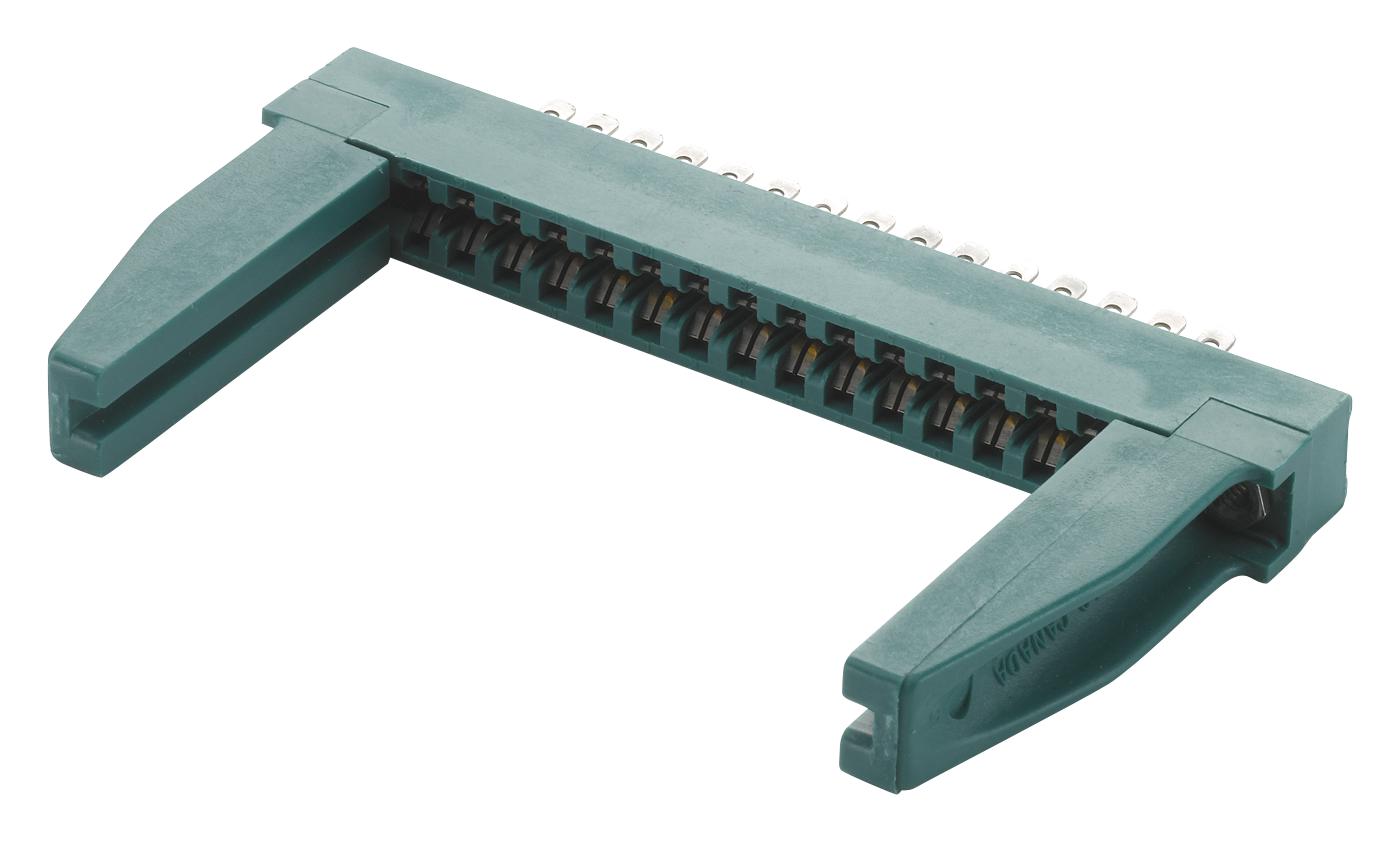

EDAC - 305-086-500-202 - Card Edge Connector, Dual Side, 1.57 mm, 86 Contacts, Panel Mount, Straight, Solder
- Card Edge Connector Type: Dual Side
- Card Thickness: 1.57mm
- No. of Contacts: 86 Contacts
- Connector Mounting: Panel Mount
- Connector Body Orientation: Straight
- Contact Termination Type: Solder
- Contact Material: Copper Alloy
- Contact Plating - Mating Side: Gold Plated Contacts
- Connector Body Material: Thermoplastic Polyester Body
- Product Range: 305 Series
- SVHC: No SVHC (15-Jan-2019)
- Card Edge / Backplane Connector Type: Card Edge
- Connector Type: Card Edge
- Contact Plating: Gold Plated Contacts
- Gender: Receptacle
- No. of Contacts: 86Contacts
- No. of Rows: 2Rows
- Pitch Spacing: 3.96mm
- Row Pitch: 3.56mm
