31101103 Terminal Block, Wire TO BRD, 3Pos, 14AWG Metz Connect

METZ CONNECTUGS :31101103 Code de commande:1909748

Prix:
Prix ​​promotionnel€1,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1270 unité)

Documents et téléchargements

description

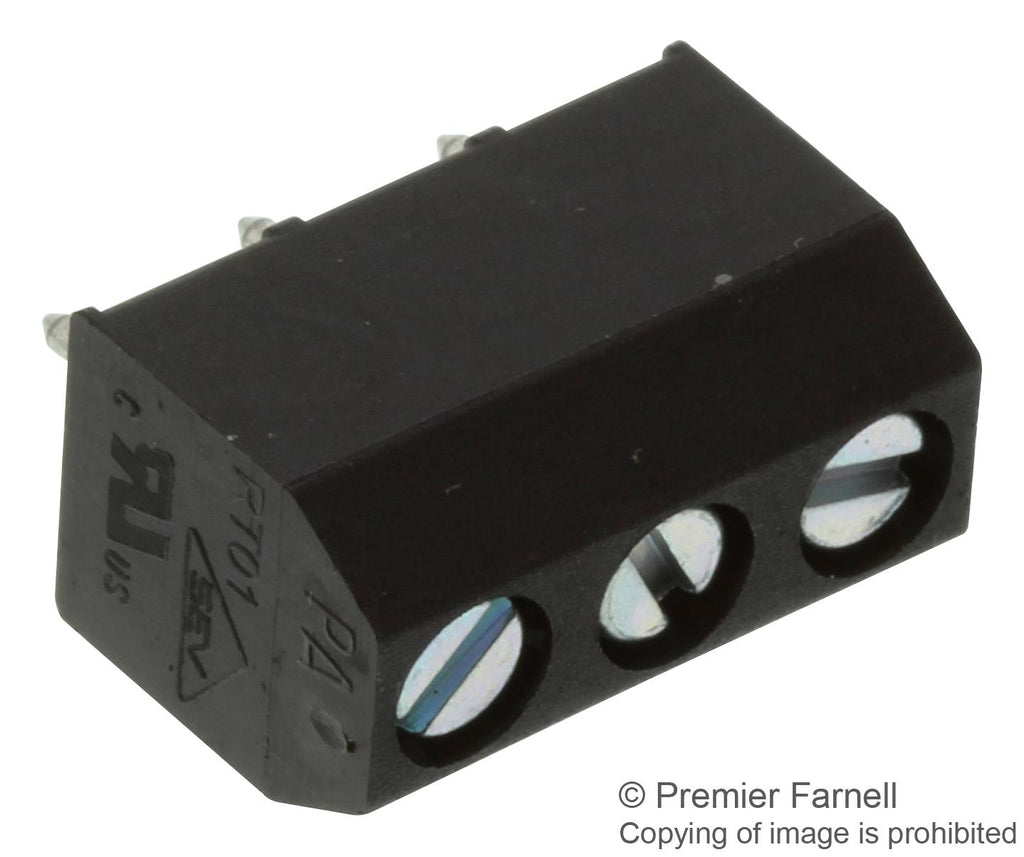

METZ CONNECT - 31101103 - Wire-To-Board Terminal Block, 5.08 mm, 3 Ways, 28 AWG, 14 AWG, 1.5 mm², Screw

  • Pitch Spacing: 5.08mm
  • No. of Positions: 3Ways
  • Wire Size AWG Min: 28AWG
  • Wire Size AWG Max: 14AWG
  • Conductor Area CSA: 1.5mm²
  • Wire Connection Method: Screw
  • Rated Current: 13A
  • Rated Voltage: 130V
  • Block Orientation: Through Hole Right Angle
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Colour: Light Grey
  • Connector Mounting: PCB Mount
  • Connector Type: Terminal Block, PCB
  • Contact Material: Steel
  • External Height: 10mm
  • External Length / Height: 15mm
  • External Width: 8mm
  • Flammability Rating: UL94V-2
  • Height: 15mm
  • Material: Polyamide 6.6 UL94V-2
  • Operating Temperature Max: 100°C
  • Pin Diameter: 0.9mm
  • Voltage Rating VAC: 125V
  • Wire Area Size Max: 1.5mm²
