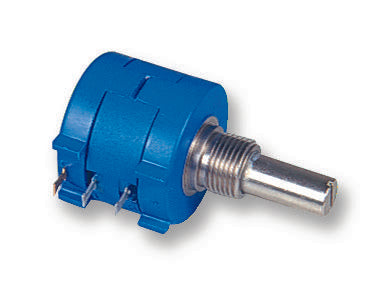

BOURNS - 3590S-2-102L - Rotary Potentiometer, Wirewound, 1 kohm, 10 Turns, Linear, 2 W, ± 5%, 3590S
- Track Resistance: 1kohm
- No. of Turns: 10Turns
- Track Taper: Linear
- Power Rating: 2W
- Resistance Tolerance: ± 5%
- Product Range: 3590S Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.63mm
- SVHC: Lead (15-Jan-2019)
- External Length / Height: 18.6mm
- Full Power Rating Temperature: 40°C
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 1500V
- Resistance: 1kohm
- Resistor Element Material: Wirewound
- Resolution %: 0.029%
- Rotational Life Cycles: 1000000
- Temperature Coeff. +: 50ppm/°C
- Temperature Coefficient: ± 50ppm/°C
- Terminal Resistance: 1ohm
- Termination Type: Solder
- Thread Size: 3/8"32UNEF
- Voltage Rating: 450VAC
- Voltage Rating VAC: 450V
