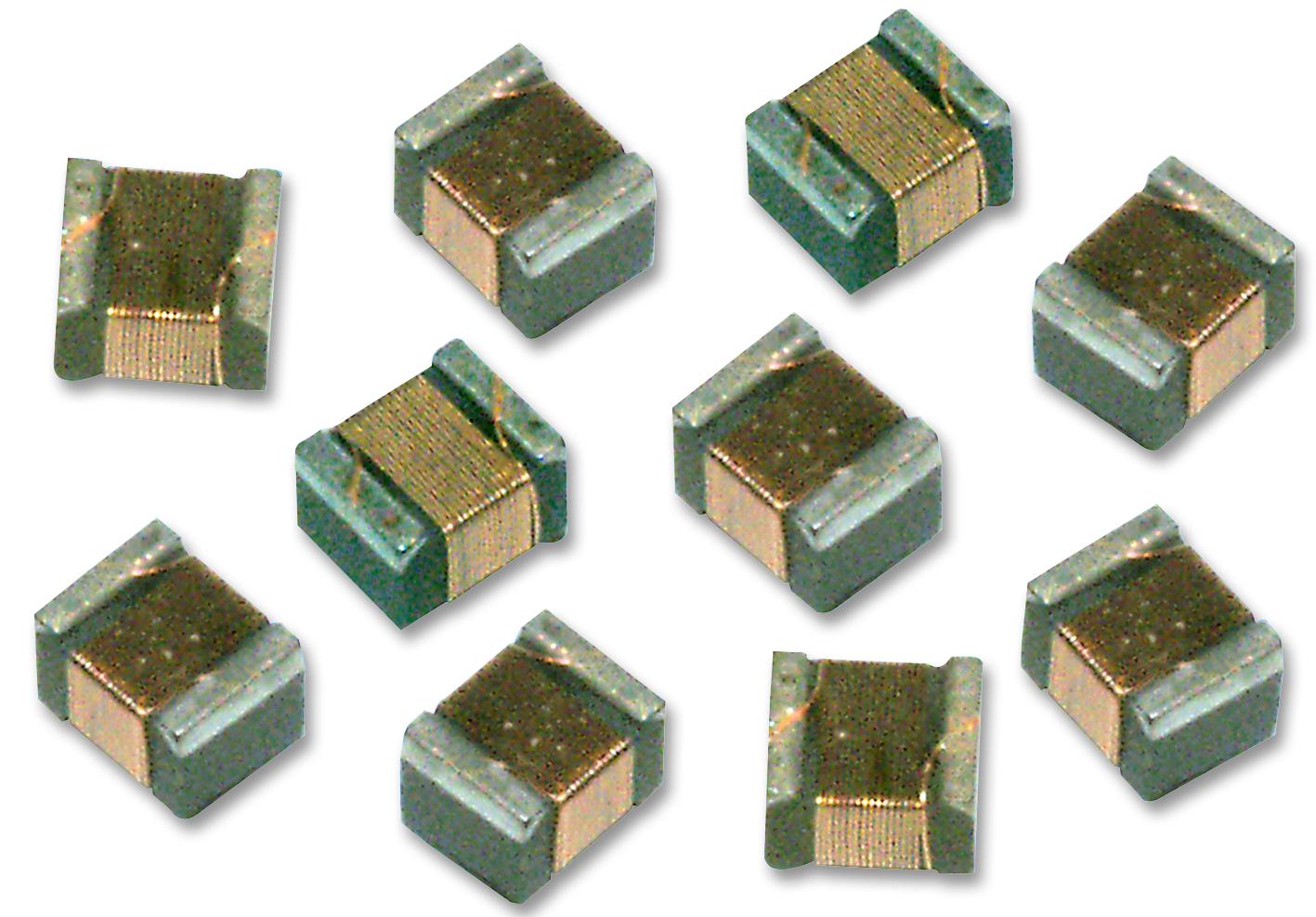

TE CONNECTIVITY - 36501E39NJTDG - Wirewound Inductor, 39 nH, 0.55 ohm, 2.1 GHz, 200 mA, 0402 [1005 Metric], 3650
- Inductance: 39nH
- Product Range: 3650 Series
- DC Current Rating: 200mA
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.55ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 2.1GHz
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 0.61mm
- External Length / Height: 1.27mm
- External Width: 0.76mm
- Inductor Case Style: 0402 [1005 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
