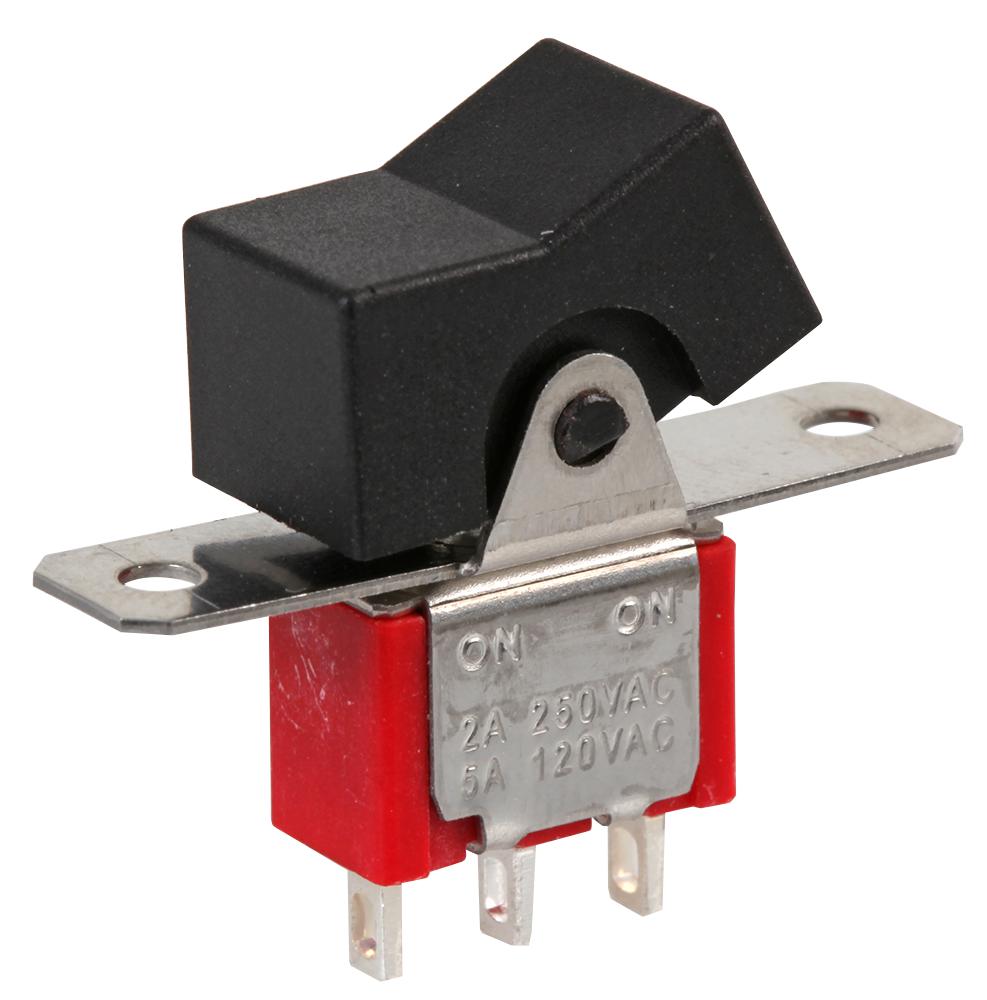

MULTICOMP PRO - 3MS1R1M1QE - Rocker Switch, On-On, SPDT, Non Illuminated, Panel Mount, Black, 3M
- Illumination: Non Illuminated
- Contact Configuration: SPDT
- Switch Operation: On-On
- Actuator / Cap Colour: Black
- Switch Mounting: Panel
- Contact Current Max: 2A
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Nom: 125V
- Product Range: 3MS1 Series
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current @ Contact Voltage DC Max: 5A
- Contact Current AC Max: 2A
- Contact Current DC Max: 5A
- Contact Current Rating: 5A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 125V
- External Depth: 9.56mm
- External Length / Height: 12.7mm
- External Width: 6.86mm
- Height: 12.7mm
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 6.35mm
- Panel Cutout Width: 10.62mm
- Panel Cutout length: 17.96mm
- Thread Size: 1/4" x 40 NS
