536608006 Receptacle, Panel, SKT Insert, 8WAY Jaeger

JAEGERUGS :536608006 Code de commande:4884462

Prix:
Prix ​​promotionnel€15,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (81 unité)

Documents et téléchargements

description

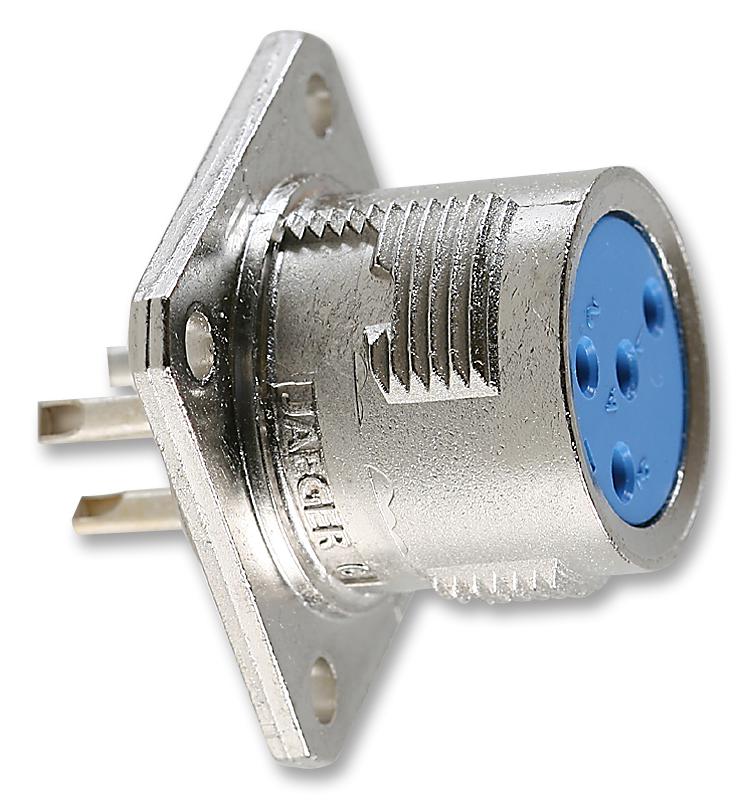

JAEGER - 536608006 - Circular Connector, Rapid Series, Panel Mount Receptacle, 8 Contacts, Solder Socket, Metal Body

  • Product Range: Rapid Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 8Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: -
  • Connector Body Material: Metal Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Silver
  • Breakdown Voltage Vbr: 2500V
  • Connector Insert Type: 2-8
  • Connector Mounting: Panel Mount
  • Connector Shell Size: 2
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Silver Plated Contacts
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Gender: Receptacle
  • Insulation Resistance: 5000Mohm
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
