description

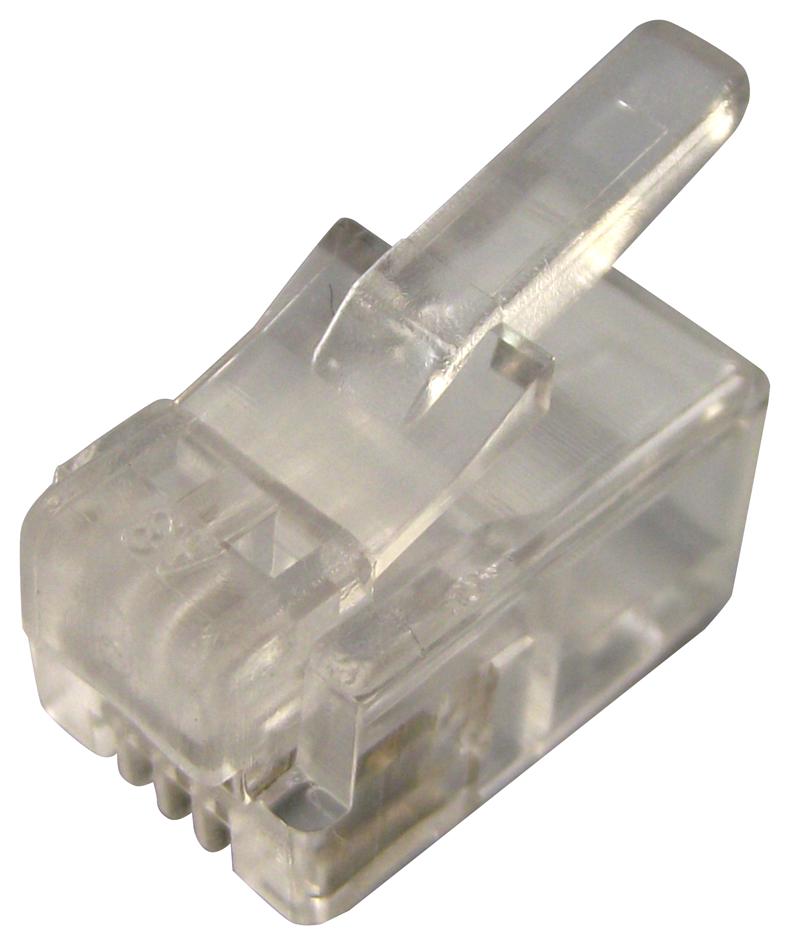

MULTICOMP PRO - 7001-4P4C - Modular Connector, RJ10 Plug, 1 x 1 (Port), 4P4C, Cable Mount
- Modular Connector Type: RJ11 Plug
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 4P4C
- LAN Category: -
- IP Rating: -
- Connector Mounting: Cable Mount
- Connector Orientation: Vertical
- Shielding: Unshielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Type: RJ11
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: IDC / IDT
- Contact Termination Type: IDC / IDT
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Gender: Plug
- Insulation Resistance: 1000Mohm
- No. of Contacts: 4Contacts
- No. of Ports: 1Ports
- No. of Positions: 4Ways
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 150V
- Withstand Voltage: 750V
Frais de port prévus
Tu pourrais aussi aimer

MULTICOMP PRO
7001-6P6C Modular, Plug, IDC, RJ12, Flat, 6P6C multicomp Pro
Prix promotionnel€0,25
En stock, 7607 produits
WURTH ELEKTRONIK
615008137121 Jack, RJ45, HORIZ, 8P8C Wurth Elektronik
Prix promotionnel€2,70
En stock, 136 produits
STEWART CONNECTOR
937-SP-3044 Plug, Modular, 4WAY, PK10 Stewart Connector
Prix promotionnel€6,19
En stock, 301 produits
WURTH ELEKTRONIK
615008137421 Modular, Jack, THT, R/A, RJ45, 8P8C Wurth Elektronik
Prix promotionnel€4,95
En stock, 399 produits
HIROSE(HRS)

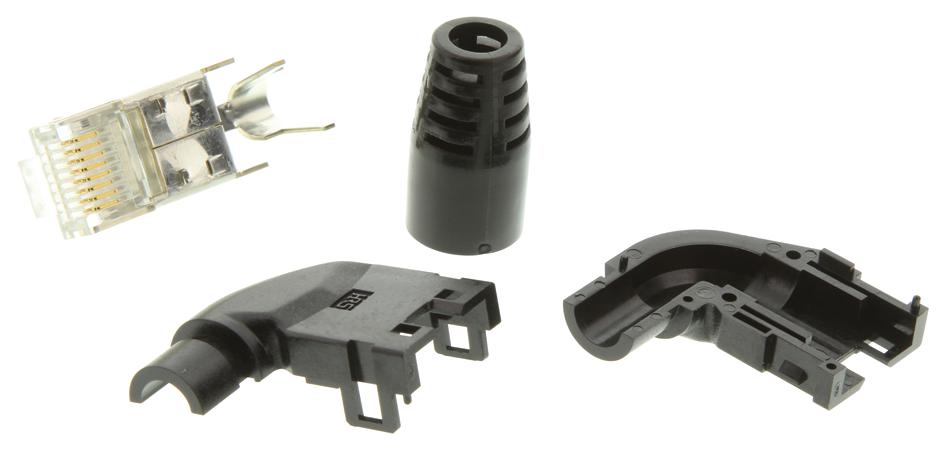

TM11APA-88P(03) Plug, RJ45, L-Shape, KIT Hirose(Hrs)
