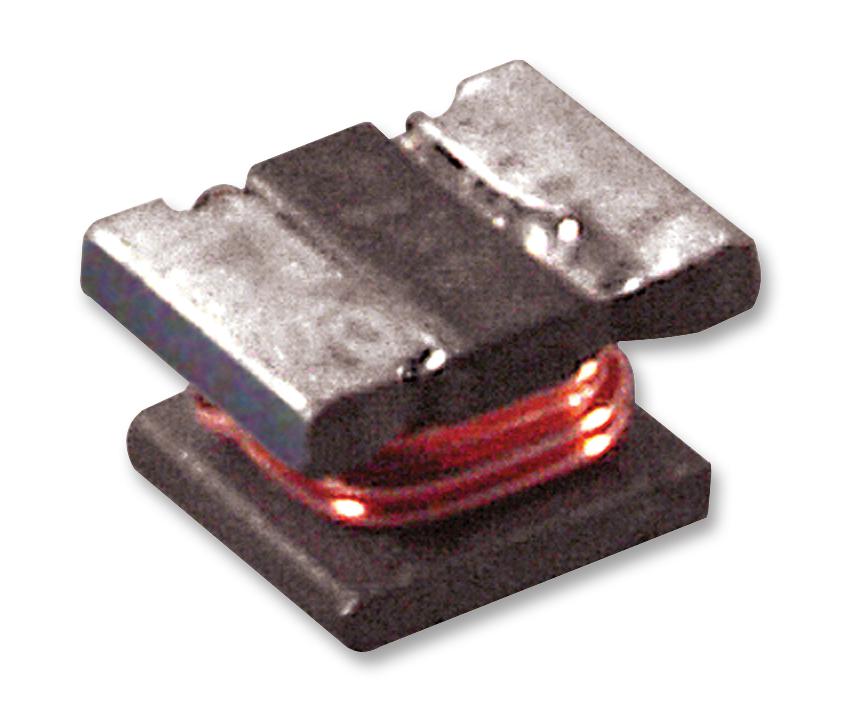

WURTH ELEKTRONIK - 744032180 - Power Inductor (SMD), 18 µH, 240 mA, Unshielded, 650 mA, WE-LQ, 3.2mm x 2.5mm x 2mm
- Inductance: 18µH
- RMS Current (Irms): 240mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 650mA
- Product Range: WE-LQ Series
- Power Inductor Case: 3.2mm x 2.5mm x 2mm
- DC Resistance Max: 1.1ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 2.5mm
- External Length / Height: 2mm
- External Width: 3.2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 35
- Q Test Frequency: 1MHz
- Resonant Frequency: 15MHz
- Self Resonant Frequency Min: 15MHz
- Test Frequency: 1MHz
