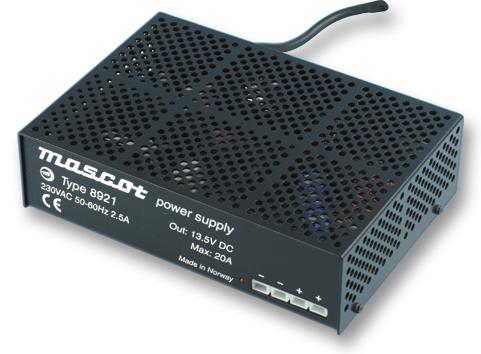

MASCOT - 8921 12V - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 270 W, 13.5 V, 20 A
- No. of Outputs: 1Outputs
- Output Power Max: 270W
- Output Voltage - Output 1: 13.5V
- Output Current - Output 1: 20A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 190V AC to 264V AC
- Power Supply Output Type: Fixed
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Applications: General Purpose
- Approval Bodies: CE, EN
- External Depth: 58mm
- External Length / Height: 148mm
- External Width: 210mm
- Height: 58mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 190V
- Length: 210mm
- Load Current Max: 20A
- No. of Outputs: 1 Output
- Output Current Max: 20A
- Power Rating: 290W
- Power Supply Type: Switch Mode
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 190V
- Supply Voltage Typ: 230V AC
- Width: 148mm
