90136-1204 Connector, Header, 4Pos, 1ROW, 2.54mm Molex

MOLEXUGS :90136-1204 Code de commande:9733817

Prix:
Prix ​​promotionnel€3,29

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1069 unité)

Documents et téléchargements

description

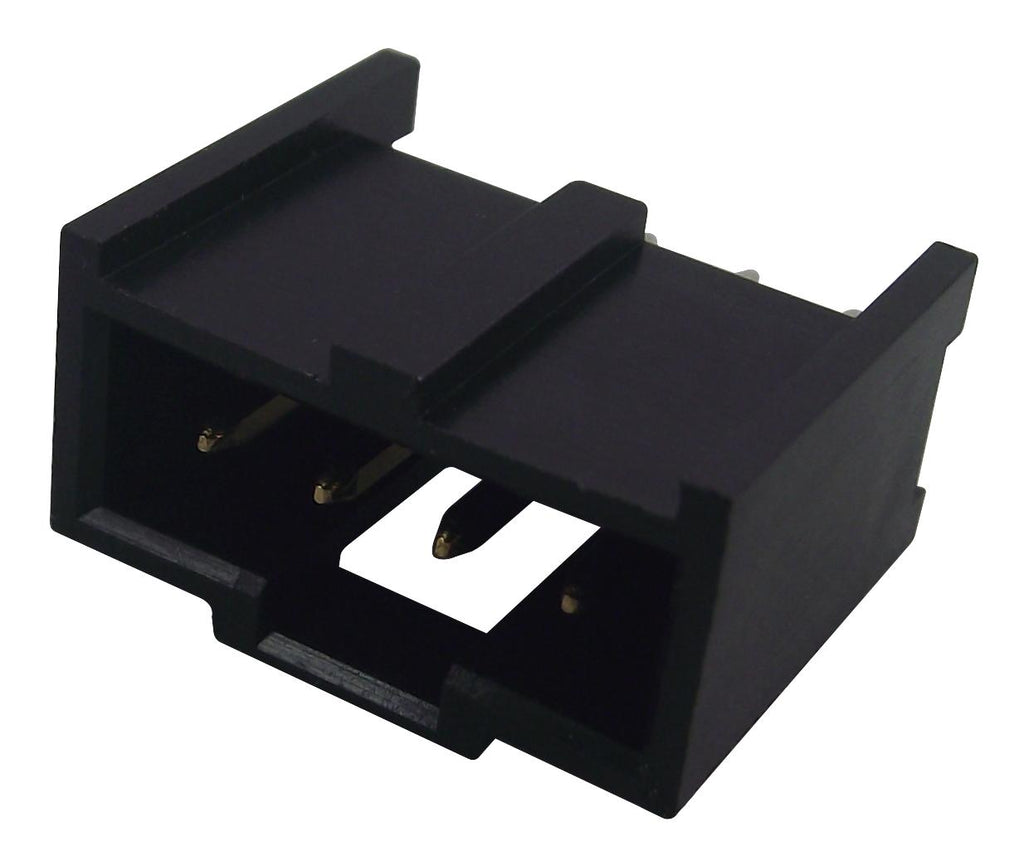

MOLEX - 90136-1204 - Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows, 4 Contacts, Through Hole Straight

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 4Contacts
  • Gender: Header
  • Product Range: C-Grid III 90136 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • Contact Resistance: 20mohm
  • Current Rating: 3A
  • Insulation Resistance: 5000Mohm
  • Material: Glass Filled Polyester UL94V-0
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Voltage Rating VAC: 350V
  • Working Voltage: 350V
