97C08ST Switch, Dip, SMD, SPST, 8 Way GRAYHILL

GRAYHILLUGS :97C08ST Code de commande:1608127

Prix:
Prix ​​promotionnel€13,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

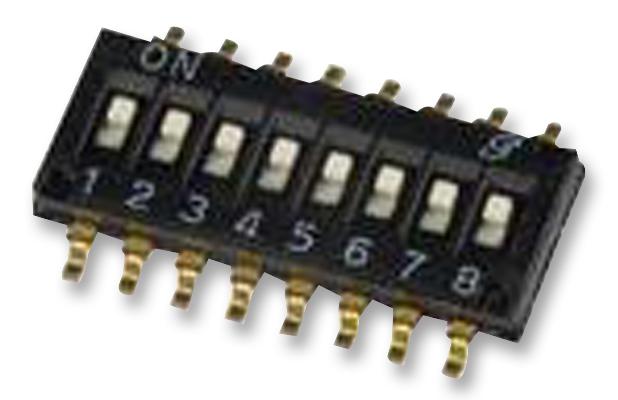

GRAYHILL - 97C08ST - DIP / SIP Switch, 8 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA

  • No. of Circuits: 8Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: 94H Series
  • Switch Type: DIP Sealed
  • SVHC: No SVHC (27-Jun-2018)
  • Actuation Type: Flat
  • Actuator Type: Flush Slide
  • External Depth: 7.16mm
  • External Length / Height: 10.16mm
  • External Width: 10.92mm
  • Lead Spacing: 1.27mm
  • No. of Pins: 3Pins
  • No. of Positions: 8Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pitch Spacing: 1.28mm
