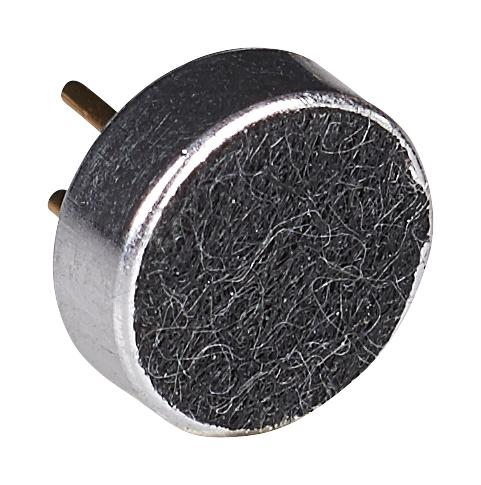

ABM-703-RC Microphone, Omni, Pcb Mount multicomp Pro

MULTICOMP PROUGS :ABM-703-RC Code de commande:1736559

Prix:
Prix ​​promotionnel€2,37

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (292 unité)

Documents et téléchargements

description

MULTICOMP PRO - ABM-703-RC - Microphone, Omnidirectional, 100 Hz to 16 kHz, 2 V to 10 V, -40 dB

  • Transducer Function: Microphone
  • Directivity: Omnidirectional
  • Frequency Response Min: 100Hz
  • Frequency Response Max: 16kHz
  • Supply Voltage Min: 2V
  • Supply Voltage Max: 10V
  • Sensitivity (dB): -40dB
  • Drain Current Max: 500µA
  • Output Impedance: 2.2kohm
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Current Consumption: 0.5mA
  • Device Type: Electret Condenser Microphone
  • External Diameter: 6mm
  • External Height: 2.2mm
  • External Length / Height: 2.2mm
  • Height: 2.2mm
  • Operating Frequency Max: 16000Hz
  • Sensitivity: -40±3 dB
  • Termination Type: PCB Pin
