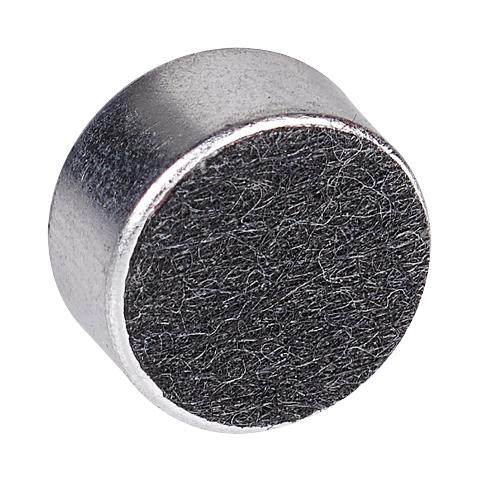

MULTICOMP PRO - ABM-712-RC - Microphone, Noise Cancelling, 100 Hz to 10000 Hz, 2 V to 10 V, -46 dB
- Transducer Function: Microphone
- Directivity: Noise Cancelling
- Frequency Response Min: 100Hz
- Frequency Response Max: 10000Hz
- Supply Voltage Min: 2V
- Supply Voltage Max: 10V
- Sensitivity (dB): -46dB
- Drain Current Max: -
- Output Impedance: 2.2kohm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Current Consumption: 0.5mA
- Device Type: Electret Condenser Microphone
- External Depth: 9.7mm
- External Diameter: 9.7mm
- External Height: 5mm
- Sensitivity: -46±3 dB
