ADP5111 Pressure Sensor, -100KPA, 1 Port, 5mm Panasonic

PANASONICUGS :ADP5111 Code de commande:2448063

Prix:
Prix ​​promotionnel€72,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documenten en downloads

description

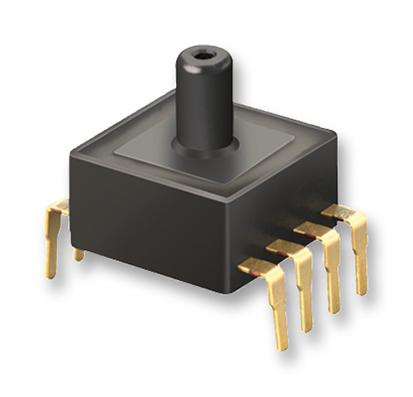

PANASONIC - ADP5111 - Pressure Sensor, M Package, 0 to 50°C, -100 kPa, Voltage, Gauge, 5 VDC, Single Axial Barbless

  • Operating Pressure Max: -100kPa
  • Sensor Output: Voltage
  • Pressure Measurement Type: Gauge
  • Voltage Rating: 5VDC
  • Port Style: Single Axial Barbless
  • Supply Current: -
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Accuracy %: 1.25%
  • No. of Pins: 8Pins
  • Operating Pressure Min: -100kPa
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Output Voltage Max: 4.5V
  • Output Voltage Min: 0.5V
  • Pressure Type: Gauge, Vacuum
  • Sensor Case Style: DIP
  • Supply Voltage Max: 5.25VDC
  • Supply Voltage Min: 4.75VDC
